GIGABYTE GB X870E EAGLE WIFI7 / AM5
GIGABYTE GB X870E EAGLE WIFI7 / AM5
GIGABYTE GB X870E EAGLE WIFI7 / AM5
GIGABYTE GB X870E EAGLE WIFI7 / AM5

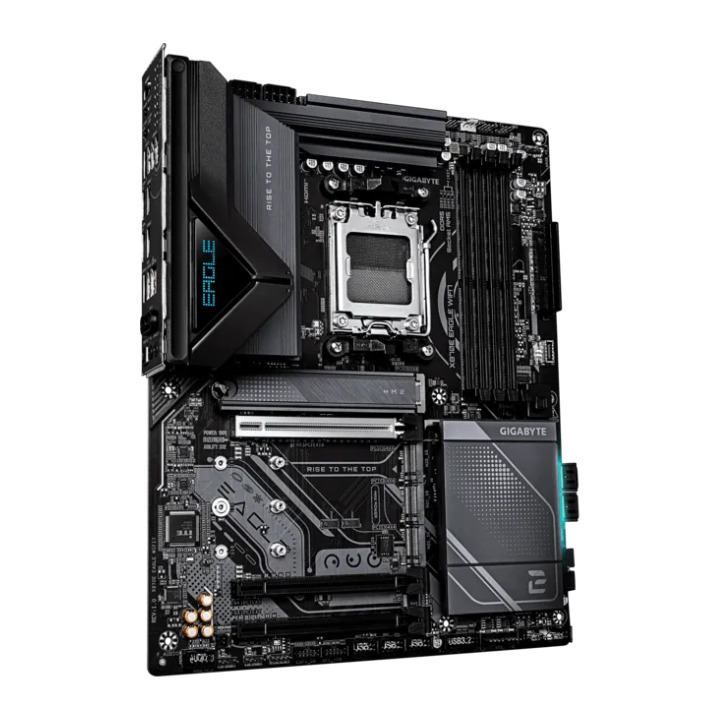

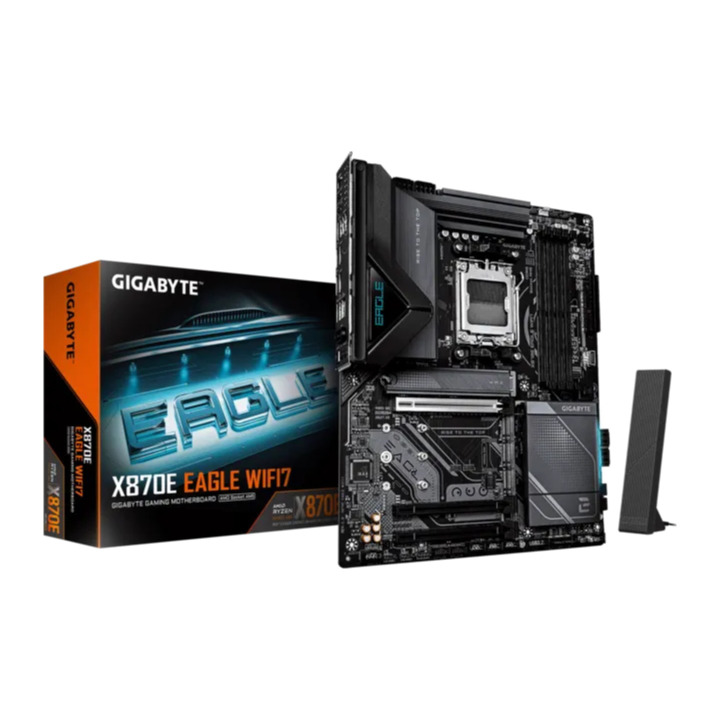

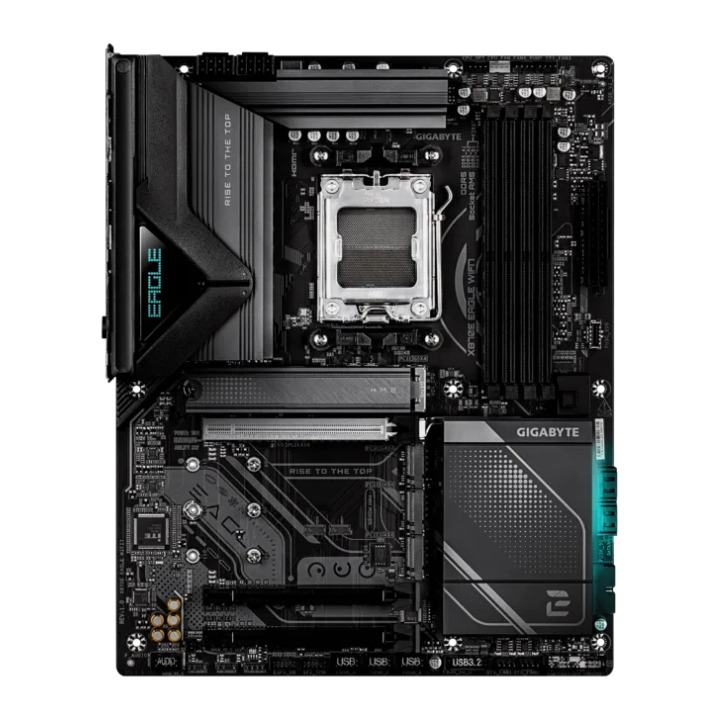

Дънна платка GIGABYTE GB X870E EAGLE WIFI7 / AM5

GIGABYTE
291,24 €
с включено ДДС
В наличност
  • Сокет на процесора: AM5
  • Гаранция: 3 години
Споделяне

ПроизводителGigabyte
ГрафикаIntegrated Graphics Processor with AMD Radeon™ Graphics support+ASMedia USB4® Controller:;
- 2 x USB4® USB Type-C® ports, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160@240 Hz;
* Support for DisplayPort 1.4 version and HDR.;
Integrated Graphics Processor with AMD Radeon™ Graphics support:;
- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz;
* Support for HDMI 2.1 version, HDCP 2.3, and HDR.;
** Support for native HDMI 2.1 TMDS compatible ports.
Поддържани процесориAMD Socket AM5, support for:;
AMD Ryzen™ 9000 Series Processors/;
AMD Ryzen™ 8000 Series Processors/;
AMD Ryzen™ 7000 Series Processors
ЧипсетAMD X870E
Слотове за разширение1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:;
- AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x16 mode;
- AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode;
- AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode;
* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.;
Chipset:;
- 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4);
* The PCIEX4 slot shares bandwidth with the M2D_SB connector. The PCIEX4 slot becomes unavailable when a device is installed in the M2D_SB connector.;
- 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x2 (PCIEX2)
Съхранение на данни1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs:;
- AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs;
- AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs;
- AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs;
3 x M.2 connectors (M2B_SB, M2C_SB, M2D_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSDs;
4 x SATA 6Gb/s connectors
RAIDRAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices;
* RAID 5 is only available on AMD Ryzen™ 9000 Series Processors.;
RAID 0, RAID 1, and RAID 10 support for SATA storage devices
Тип паметSupport for DDR5 8200(OC) / 8000(OC) / 7800(OC) / 7600(OC) / 7200(OC) / 7000(OC) / 6800(OC) / 6666(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules;
4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory;
Dual channel memory architecture;
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules;
Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules;
(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)
Портове на задния панелiTE® I/O Controller Chip
USBCPU+ASMedia USB4® controller:;
- 2 x USB4® USB Type-C® ports on the back panel;
CPU:;
- 2 x USB 3.2 Gen 1 ports on the back panel;
Chipset:;
- 1 x USB Type-C® port with USB 3.2 Gen 2x2 support, available through the internal USB header;
- 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel;
- 6 x USB 3.2 Gen 1 ports (2 ports on the back panel, 4 ports available through the internal USB headers);
- 8 x USB 2.0/1.1 ports (2 ports on the back panel, 6 ports available through the internal USB headers)
КонекториInternal I/O Connectors;
1 x 24-pin ATX main power connector;
2 x 8-pin ATX 12V power connectors;
1 x CPU fan header;
1 x CPU fan/water cooling pump header;
3 x system fan headers;
1 x system fan/water cooling pump header;
3 x addressable RGB Gen2 LED strip headers;
1 x RGB LED strip header;
4 x M.2 Socket 3 connectors;
4 x SATA 6Gb/s connectors;
1 x front panel header;
1 x front panel audio header;
1 x USB Type-C® header, with USB 3.2 Gen 2x2 support;
2 x USB 3.2 Gen 1 headers;
3 x USB 2.0/1.1 headers;
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only);
1 x reset jumper;
1 x Clear CMOS jumper;

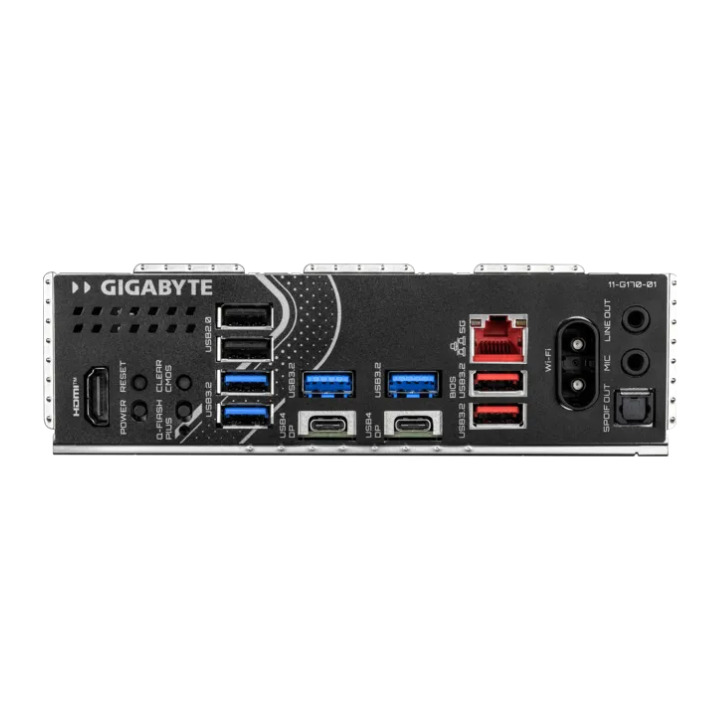

Back Panel Connectors;
1 x HDMI port (Note);
1 x reset button;
1 x power button;
1 x Clear CMOS button;
1 x Q-Flash Plus button;
2 x USB 2.0/1.1 ports;
4 x USB 3.2 Gen 1 ports;
2 x USB4® USB Type-C® ports (DisplayPort (Note));
1 x RJ-45 port;
2 x USB 3.2 Gen 2 Type-A ports (red);
2 x antenna connectors (2T2R);
2 x audio jacks;
1 x optical S/PDIF Out connector
ЗвукRealtek® ALC1220 CODEC;
* The back panel line out jack supports DSD audio.;
High Definition Audio;
2/4/5.1/7.1-channel;
* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.;
Support for S/PDIF Out
Мрежа (LAN)Realtek® 5GbE LAN chip (5 Gbps/2.5 Gbps/1 Gbps/100 Mbps)
Безжична връзкаRealtek® Wi-Fi 7 RTL8922AE;
- 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands;
- BLUETOOTH 5.4;
- Support for 11be 160MHz wireless standard;
(Actual data rate may vary depending on environment and equipment.);
* Wi-Fi 7 features require Windows 11 SV3 to function properly. (There is no support driver for Windows 10.);
** Wi-Fi 7 channels on 6 GHz band availability depends on individual country's regulations.;
***Bluetooth version may change with updates. See the Wi-Fi chip vendor's website for details.
Bluetooth5.4
BIOS1 x 256 Mbit flash;
Use of licensed AMI UEFI BIOS;
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Форм-факторATX Form Factor;
30.5cm x 24.4cm
Операционна системаSupport for Windows 11 64-bit
Гаранция3 години

  • Марка
  • Референция
    X870E EAGLE WIFI7
  • MPN
    X870E EAGLE WIFI7
Плащане с наложен платеж
Плащане при получаване
Еконт и Спиди
Доставка до адрес или офис
14 дни право на връщане
При покупка онлайн
