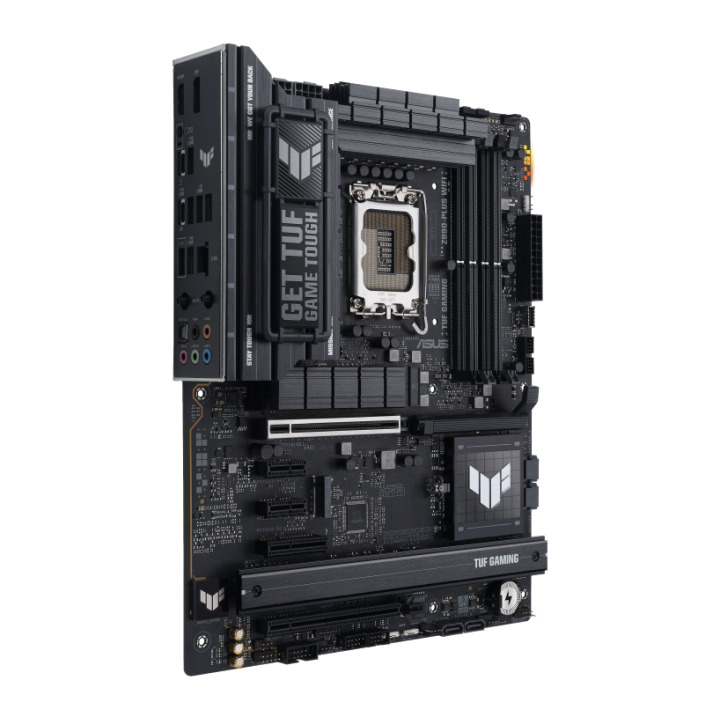

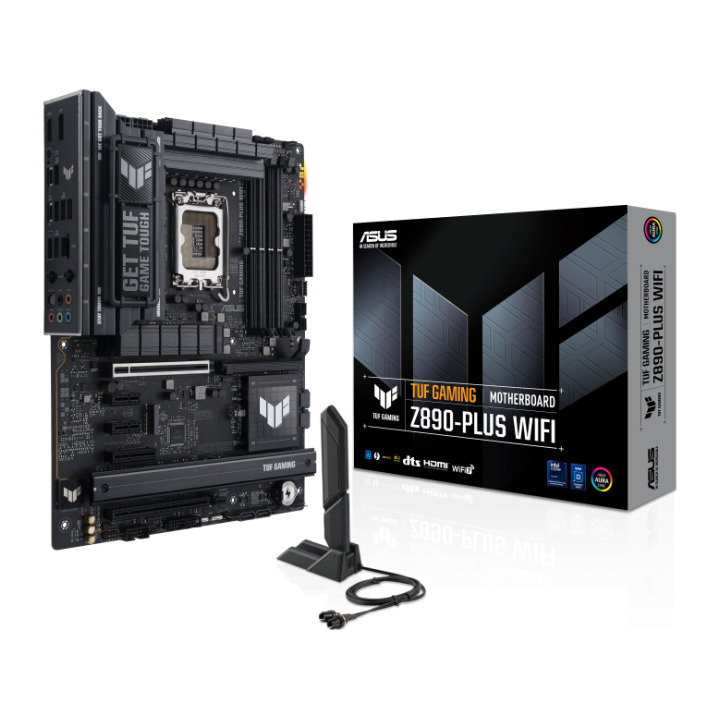

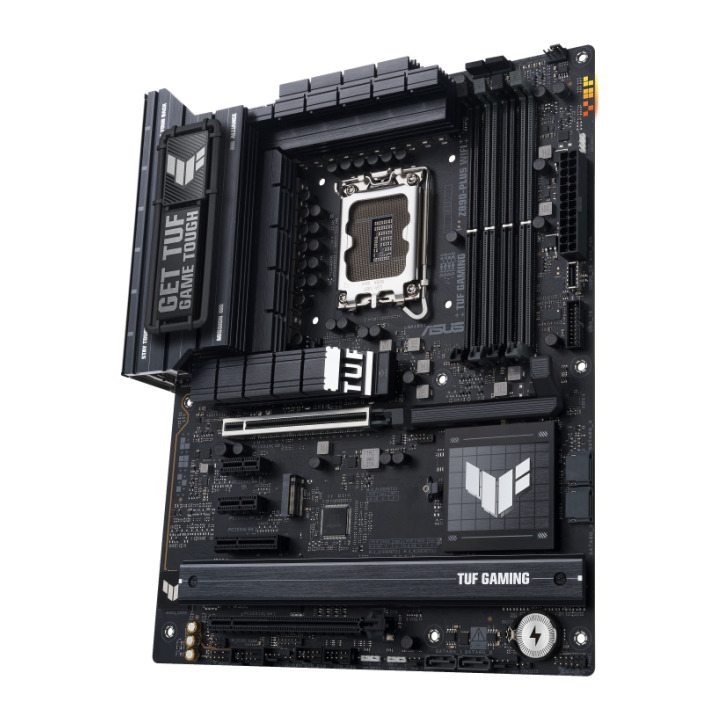

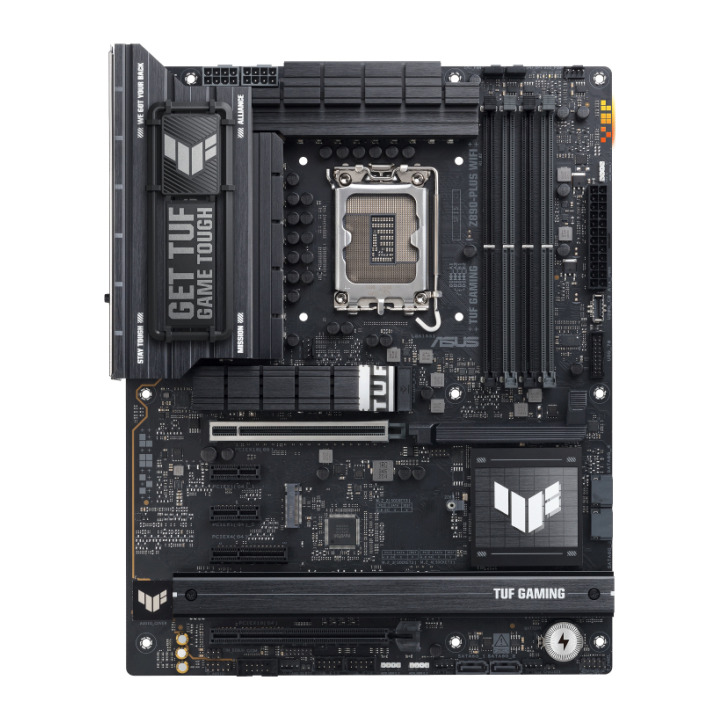

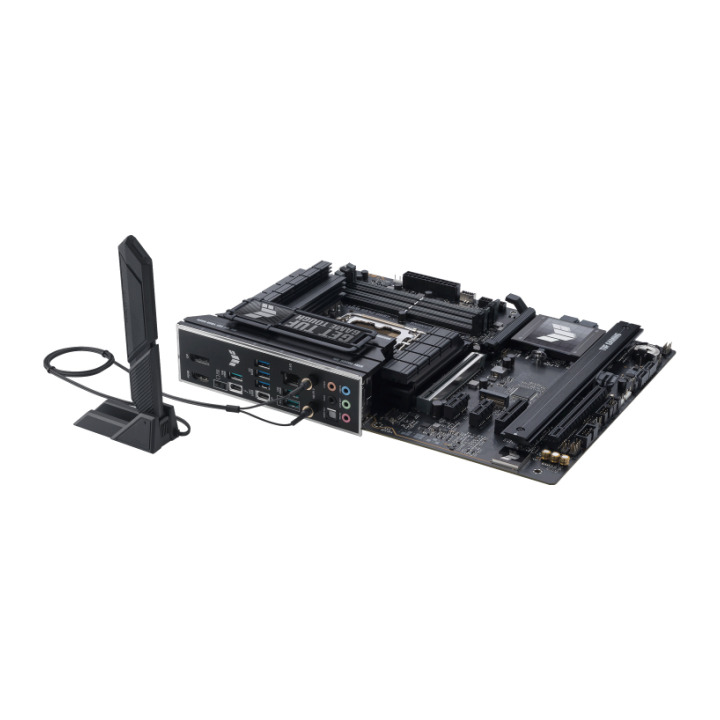

Дънна платка ASUS TUF GAMING Z890-PLUS WIFI

ASUS
367,82 €
с включено ДДС
В наличност
  • Сокет на процесора: LGA1851
  • Гаранция: 3 години
Споделяне

ПроизводителASUS
Графика1 x DisplayPort**;
1 x HDMI™ port***;
1 x Intel® Thunderbolt™ 4 port (USB Type-C®) supports DisplayPort and Thunderbolt™ video outputs****;
1 x USB 20Gbps port (USB Type-C®) supports DisplayPort video output******;
* Graphics specifications may vary between CPU types;
** Supports max. 4K@60Hz as specified in DisplayPort 1.4.;
*** Supports 4K@60Hz as specified in HDMI 2.1;
****In ThunderboltTM 4 mode, supports up to 8K@60Hz x1 with DSC, maximum total bandwidth up to 23.8Gbps, for resolution support please check DisplayPort 2.1 specs.;
***** In DP alt mode, supports up to UHBR20.;
****** Supports max. 4K@60Hz as specified in DisplayPort 1.4.;
******* VGA resolution support depends on processors' or graphic cards' resolution.;
********While installing the operating system, please ensure that your monitor is connected to the HDMI port on the back I/O panel or to a discrete graphics card.
Поддържани процесориSupport Intel® Core™ Ultra Processors (Series 2), LGA1851*;
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
ЧипсетIntel® Z890 Chipset
Слотове за разширениеIntel® Core™ Ultra Processors(Series 2)*;
-1 x PCIe 5.0 x16 slot;
Intel® Z890 Chipset;
-1 x PCIe 4.0 x16 slot (supports x4 mode);
-1 x PCIe 4.0 x4 slot;
-2 x PCIe 4.0 x1 slots
Съхранение на данниTotal Supports 4 x M.2 slots and 4 x SATA 6Gb/s ports*;
Intel® Core™ Ultra Processors(Series 2)*;
-M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode);
-M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode);
Intel® Z890 Chipset;
-M.2_3 slot (Key M), type 2280/22110 (supports PCIe 4.0 x4 mode);
-M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes) 4 x SATA 6Gb/s ports;
* Intel® Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10, M.2 slot from CPU only support RAID 0/1/5.
Тип памет4 x DIMM slots, max. 192GB, DDR5;
Support up to 9066+MT/s (OC), Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)*;
Dual channel memory architecture;
DIMM Fit;
Supports Intel® Extreme Memory Profile (XMP) memory module;
ASUS Enhanced Memory Profile III(AEMPIII);
* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration;
** Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.

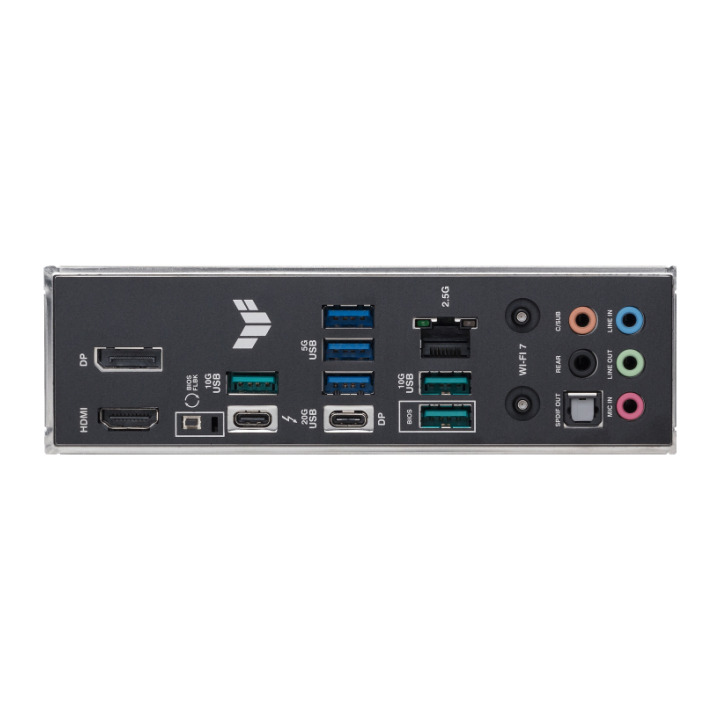

Портове на задния панел1 x DisplayPort;
1 x HDMI™ port;
1 x Wi-Fi module;
1 x Intel® 2.5Gb Ethernet port;
5 x Audio jacks;
1 x Optical S/PDIF out port;
1 x BIOS FlashBack™ button;
Rear USB (Total 8 ports)1 x Thunderbolt™ 4 port (1 x USB Type-C®);
1 x USB 20Gbps port (1 x USB Type-C®);
3 x USB 10Gbps ports (3 x Type-A);
3 x USB 5Gbps ports (3 x Type-A);
Front USB (Total 7 ports);
1 x USB 20Gbps connector (supports USB Type-C®);
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports;
2 x USB 2.0 headers support 4 additional USB 2.0 ports;
USB Type-C® power delivery output: max. 5V/3A
КонекториFan and Cooling Related;
1 x 4-pin CPU Fan header;
1 x 4-pin CPU OPT Fan header;
1 x 4-pin AIO Pump header;
4 x 4-pin Chassis Fan headers;
Power Related;
1 x 24-pin Main Power connector;
2 x 8-pin +12V CPU Power connector;
Storage Related;
4 x M.2 slots (Key M);
4 x SATA 6Gb/s ports;
USB;
1 x USB 20Gbps connector (supports USB Type-C® );
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports;
2 x USB 2.0 headers support 4 additional USB 2.0 ports;
Miscellaneous;
3 x Addressable Gen 2 headers;
1 x Clear CMOS header;
1 x Chassis Intrusion header;
1 x COM Port header;
1 x Front Panel Audio header (F_AUDIO);
1 x 10-1 pin Front System Panel header;
1 x Thunderbolt™ (USB4®) header
ЗвукRealtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC*;
- Impedance sense for front and rear headphone outputs;
- Internal audio Amplifier to enhance the highest quality sound for headphone and speakers;
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking;
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in);
- Supports up to 32-Bit/192 kHz playback*;
Audio Features;
- Audio Shielding;
- Rear optical S/PDIF out port;
- Premium audio capacitors;
- Dedicated audio PCB layers;
- Audio cover;
- Unique de-pop circuit;
* Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio.
Мрежа (LAN)1 x Intel® 2.5Gb Ethernet TUF LANGuard
Безжична връзкаWi-Fi 7* 2x2 Wi-Fi 7 (802.11be);
Supports 2.4/5/6GHz frequency band**;
Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate.;
Bluetooth® v5.4***;
*Wi-Fi features may vary depending on the operating system;
For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only support Wi-Fi 6E.;
For Windows 10, please note that no driver is available , please refer to the Wi-Fi chipset vendor's website for details.;
** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries.;
*** The Bluetooth® version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.
Bluetooth5.4
BIOS256 Mb Flash ROM, UEFI AMI BIOS
Форм-факторATX Form Factor 30.5 cm x 24.4 cm
Операционна системаWindows 11 (22H2 & later)
Гаранция3 години

  • Марка
  • Референция
    90MB1IQ0-M0EAY0
  • EAN13
    4711387763926
  • MPN
    90MB1IQ0-M0EAY0
Плащане с наложен платеж
Плащане при получаване
Еконт и Спиди
Доставка до адрес или офис
14 дни право на връщане
При покупка онлайн
