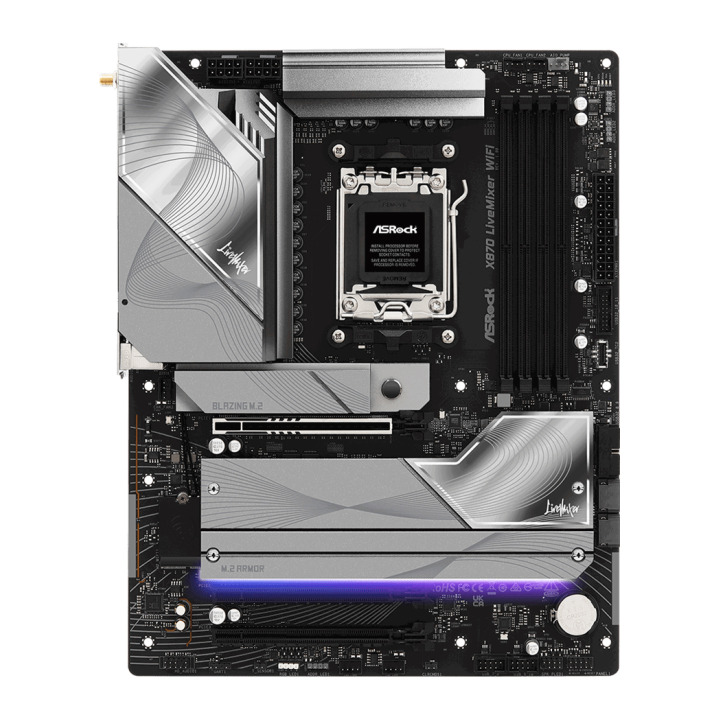

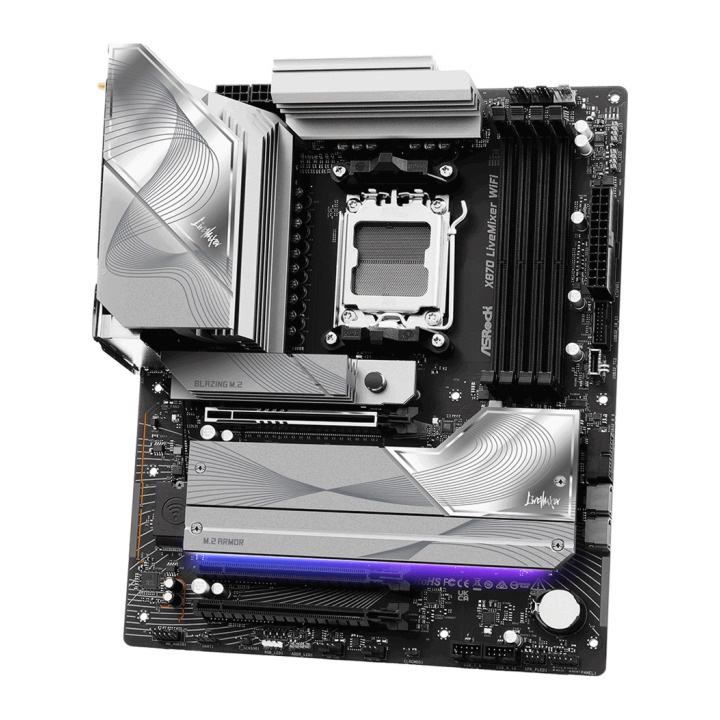

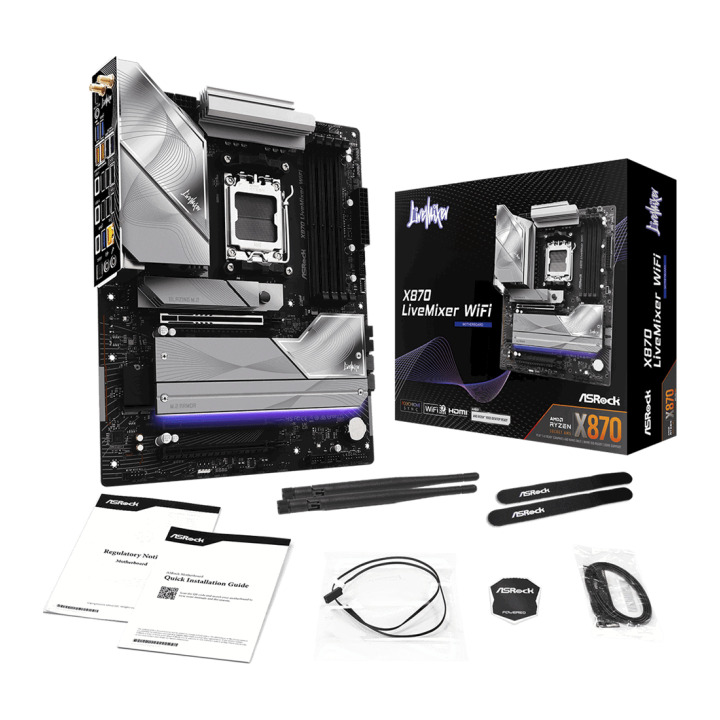

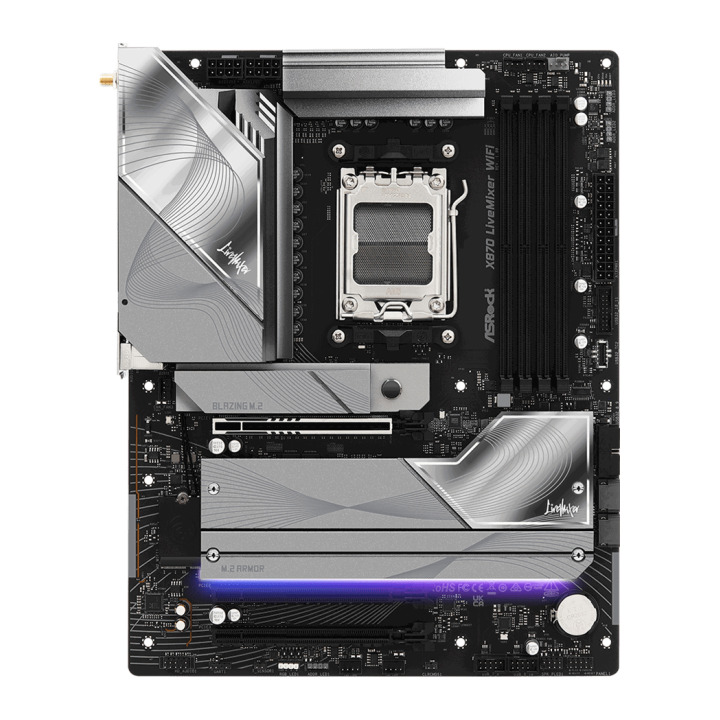

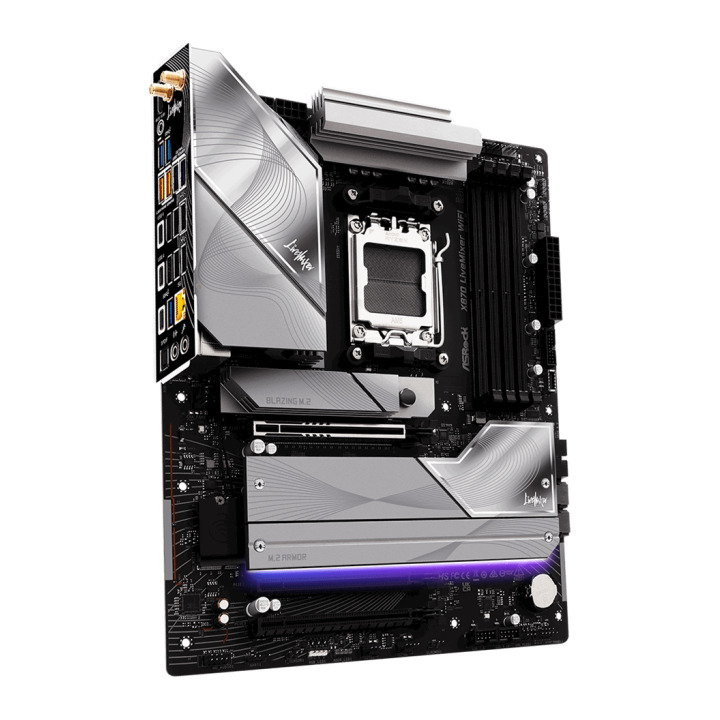

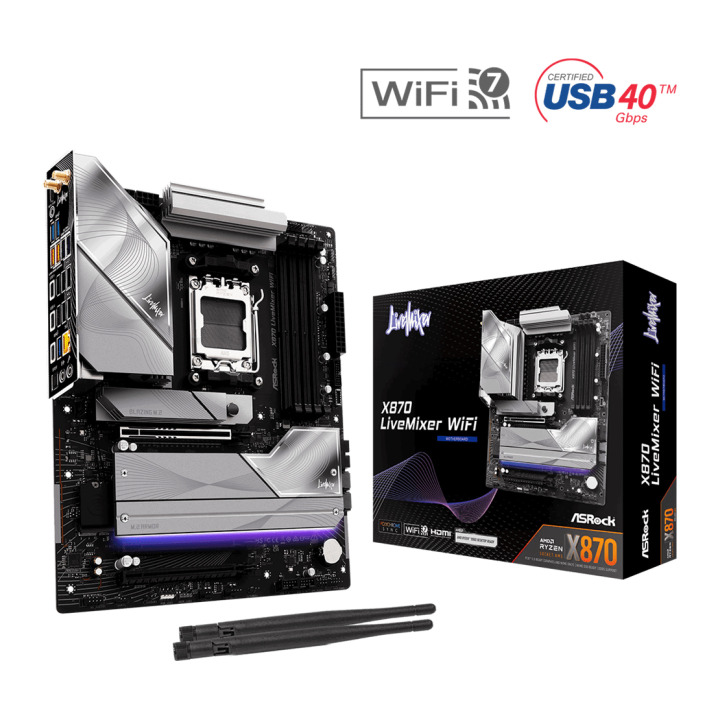

Дънна платка ASROCK X870 LIVEMIXER WIFI

ASRock

240,22 €

с включено ДДС

В наличност

Сокет на процесора: AM5
Гаранция: 3 години

Споделяне

Производител	Asrock
Модел	X870 LIVEMIXER WIFI
Графика	Integrated AMD RDNA™ graphics (Actual support may vary by CPU); - 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz; - 2 x USB4, support HDCP 2.3 and max. resolution up to 8K 30Hz** Only the CPU's embedded graphics can be displayed through USB4 ports. If you want to display to a Type-C monitor, please use AM5 Ryzen™ 9000, 8000 and 7000 processors with embedded graphics.* USB4 controller(for USB4_TC1 and USB4_TC2) will run at Gen4x2 with with 8000 (Phoenix 2) series processors.
Поддържани процесори	Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors; The availability of expansion slots may vary by CPU. Please refer to PCIe/M.2 Bandwidth Table for details.
Чипсет	AMD X870
Слотове за разширение	CPU:; - 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode; Chipset:; - 2 x PCIe 3.0 x16 Slots (PCIE2 and PCIE3), support x4 mode; - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module; - 15μ Gold Contact in VGA PCIe Slot (PCIE1); * PCIE1 will run at Gen5x16 with 9000 and 7000 series processors, Gen4x8 with 8000 (Phoenix 1) series processors and Gen4x4 with 8000 (Phoenix 2) series processors.; If M2_3 is occupied, PCIE2 will downgrade to x2 mode.; If M2_4 is occupied, PCIE3 will downgrade to x2 mode.; Supports NVMe SSD as boot disks
Съхранение на данни	CPU:; - 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode; - 1 x Blazing M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode; Chipset:; - 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode; - 1 x Hyper M.2 Socket (M2_4, Key M), supports type 2230/2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode; - 2 x SATA3 6.0 Gb/s Connectors; * Supports NVMe SSD as boot disks; M2_1 is the first priority for M.2 installation.; M2_1 will run at Gen5x4 with 9000 and 7000 series processors and Gen4x4 with 8000 (Phoenix 1 and Phoenix 2) series processors.; M2_2 will run at Gen5x4 with 9000 and 7000 series processors and Gen4x4 with 8000 (Phoenix 1) series processors. M2_2 will be unavailable with 8000 (Phoenix 2) series processors.; If M2_2 is occupied, both rear USB4 Type-C Ports and M2_2 will downgrade to x2 mode. You can switch M2_2 to x4 mode in BIOS setting, but doing so will disable USB4_TC1 and USB4_TC2.; If M2_3 is occupied, PCIE2 will downgrade to x2 mode.; If M2_4 is occupied, PCIE3 will downgrade to x2 mode.
RAID	Supports RAID 0 and RAID 1 for SATA storage devices; Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices
Тип памет	Dual Channel DDR5 Memory Technology; 4 x DDR5 DIMM Slots; Supports DDR5 ECC/non-ECC, un-buffered memory up to 8000+(OC); Max. capacity of system memory: 256GB; Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules; *Please refer to Memory Support List on ASRock's website for more information.

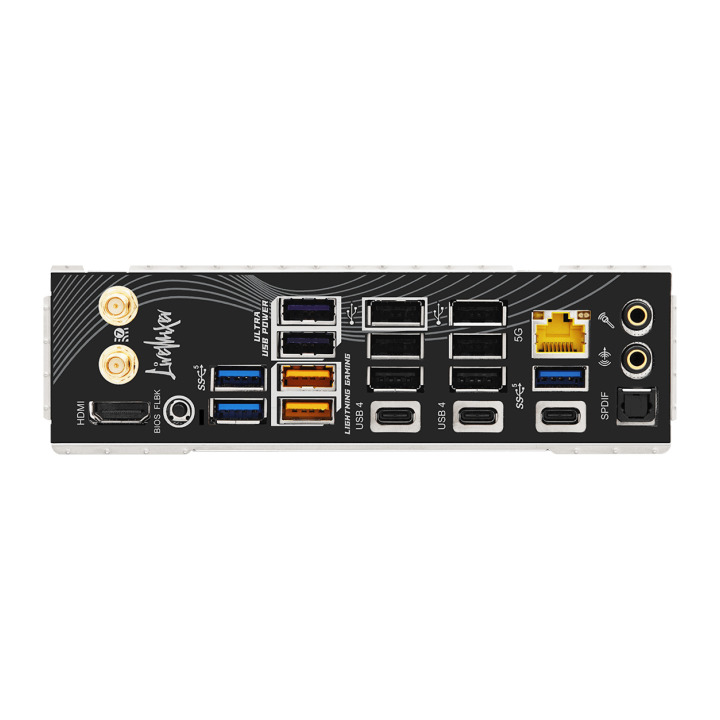

Портове на задния панел	2 x Antenna Ports; 1 x HDMI Port; 1 x Optical SPDIF Out Port; 2 x USB4 Type-C Ports (40 Gb/s); 1 x USB 3.2 Gen1 Type-C Port; 7 x USB 3.2 Gen1 Type-A Ports (USB32_34 are Lightning Gaming Ports. USB32_56 support Ultra USB Power.); 6 x USB 2.0 Ports; 1 x RJ-45 LAN Port; 1 x BIOS Flashback Button; 1 x Line Out Jack (Gold Audio Jack); 1 x Microphone Input Jack (Gold Audio Jack); Supports USB PD 3.0 up to 5V@3A (15W) charging; USB4 controller (for USB4_TC1 and USB4_TC2) will run at Gen4x2 with with 8000 (Phoenix 2) series processors.; If M2_2 is occupied, both rear USB4 Type-C Ports and M2_2 will downgrade to x2 mode. You can switch M2_2 to x4 mode in BIOS setting, but doing so will disable USB4_TC1 and USB4_TC2.; ** Device exceeds USB 3.2 Type-A power rating of [email protected] (4.5W) may trigger over-current protection (OCP), will require system reboot to restore USB power.
USB	CPU:; - 2 x USB4 Type-C (Rear); - 2 x USB 3.2 Gen1 Type-A (Rear (USB32_1 and USB32_4)); Chipset:; - 1 x USB 3.2 Gen2x2 Type-C (Front); - 9 x USB 3.2 Gen1 Type-A (5 Rear (USB32_2, USB32_356, USB32_7), 4 Front)); - 1 x USB 3.2 Gen1 Type-C (Rear); - 10 x USB 2.0 (6 Rear, 4 Front)
Конектори	1 x SPI TPM Header; 1 x Thermistor Cable Header; 1 x Power LED and Speaker Header; 1 x RGB LED Header; 3 x Addressable LED Headers; 2 x CPU Fan Connectors (4-pin) (Smart Fan Speed Control); 3 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control); 1 x AIO Pump Fan Connector (4-pin) (Smart Fan Speed Control)*; 1 x 24 pin ATX Power Connector (Hi-Density Power Connector); 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector); 1 x Front Panel Audio Connector; 2 x USB 2.0 Headers (Support 4 USB 2.0 ports); 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports); 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s); Supports in total up to 12V/3A, 36W LED Strip; Support in total up to 5V/3A, 15W LED Strip; * CPU_FAN1 supports the fan power up to 1A (12W).; CPU_FAN2, CHA_FAN1~3 and AIO_PUMP support the fan power up to 3A (36W).; CPU_FAN2, CHA_FAN1~3 and AIO_PUMP can auto detect if 3-pin or 4-pin fan is in use.
Звук	7.1 CH HD Audio with Content Protection (Realtek ALC4082 Audio Codec); Individual PCB Layers for R/L Audio Channel; Nahimic Audio
Мрежа (LAN)	5 Gigabit LAN 10/100/1000/2500/5000 Mb/s; Realtek RTL8126
Безжична връзка	802.11be 2x2 Wi-Fi 7 Module; Supports IEEE 802.11a/b/g/n/ac/ax/be; Supports 2.4GHz/5GHz/6GHz* frequency band; Supports 160MHz channel bandwidth with 6GHz* frequency band; 1 antenna to support 2 (Transmit) x 2 (Receive) diversity technology; Supports Bluetooth 5.4; Supports MU-MIMO; * The Wi-Fi 7 module is supported by Microsoft Windows® 11 only. There is no driver available for Windows® 10. The availability of the 6GHz band will depend on the different regulation status of each country and region. It will be activated (for supported countries) through Windows® Update and software updates once available.
Bluetooth	5.4
BIOS	256Mb AMI UEFI Legal BIOS with GUI support
Форм-фактор	ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm; 8 Layer PCB
Операционна система	Microsoft Windows® 10 64-bit / 11 64-bit
Гаранция	3 години
