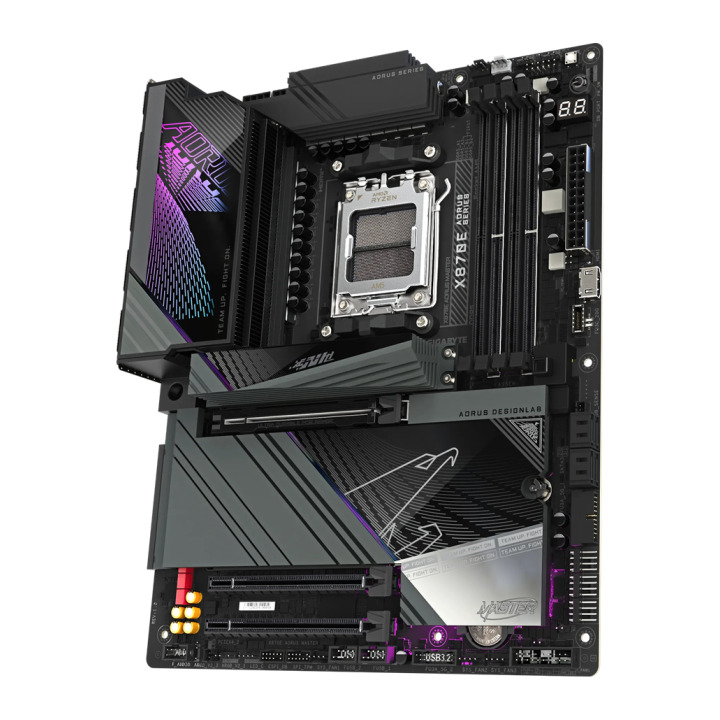

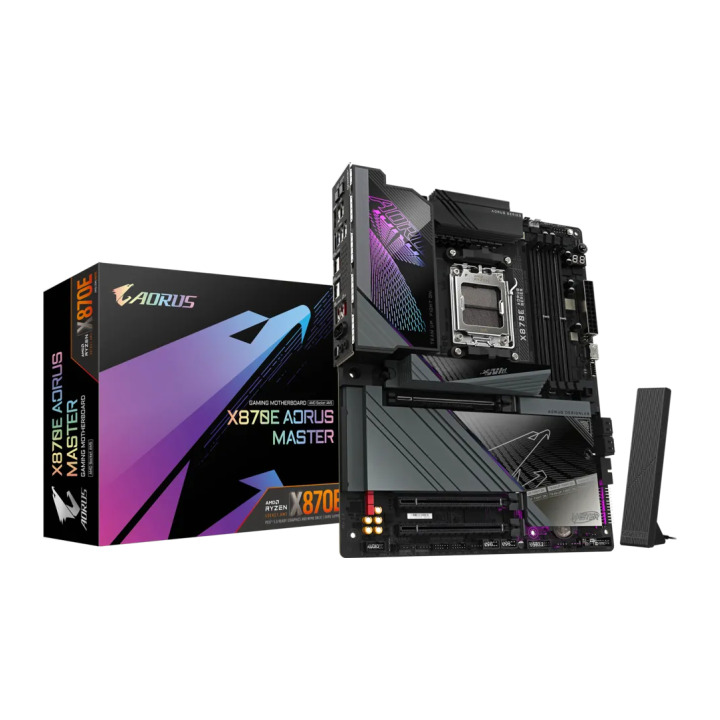

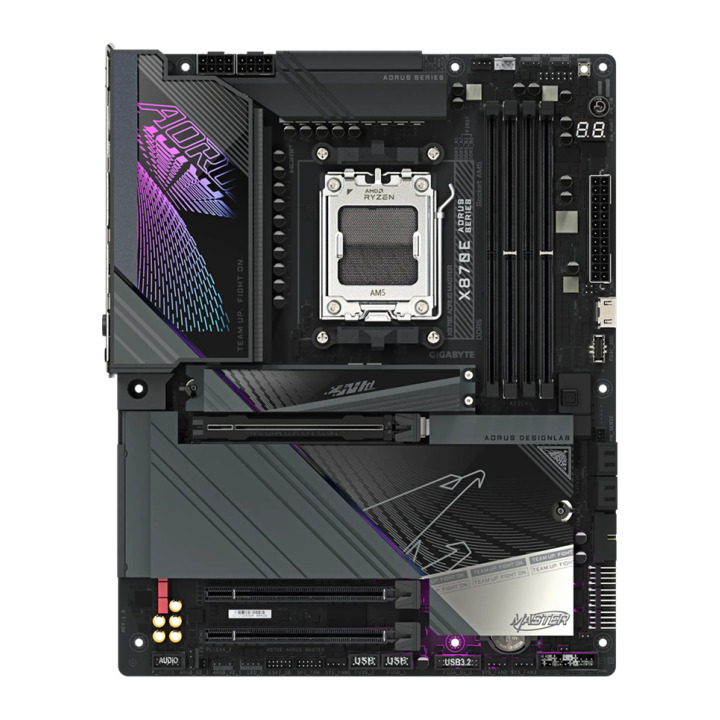

Дънна платка GIGABYTE GB X870E AORUS MASTER /AM5

GIGABYTE
526,54 €
с включено ДДС
В наличност
  • Сокет на процесора: AM5
  • Чипсет: AMD X870
  • Брой слотове за памет DDR5: 4
  • Брой SATA3 портове за диск: 4
  • Тип: Поддържа RAID
  • Тип: Наличие на HDMI изход
  • Тип: 4 броя M.2 слотове
  • Гаранция: 3 години
Споделяне

ПроизводителGIGABYTE
ГрафикаIntegrated Graphics Processor with AMD Radeon™ Graphics support+ASMedia USB4® Controller;
- 2 x USB4® USB Type-C® ports, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160@240 Hz;
* Support for DisplayPort 1.4 version and HDR.;
Integrated Graphics Processor with AMD Radeon™ Graphics support;
- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz;
* Support for HDMI 2.1 version, HDCP 2.3, and HDR.;
** Support for native HDMI 2.1 TMDS compatible ports.;
- 1 x Front HDMI port, supporting a maximum resolution of 1920x1080@30 Hz;
* Support for HDMI 1.4 version.;
(Graphics specifications may vary depending on CPU support.)
Поддържани процесориAMD Socket AM5, support for;
-AMD Ryzen™ 9000 Series Processors/;
AMD Ryzen™ 8000 Series Processors/;
AMD Ryzen™ 7000 Series Processors;
(Go to GIGABYTE's website for the latest CPU support list.)
ЧипсетAMD X870E
Слотове за разширение1 x PCI Express x16 slot (PCIEX16), integrated in the CPU;
-AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x16 mode;
* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.;
* The PCIEX16 slot shares bandwidth with the M2B_CPU and M2C_CPU connectors.;
*The PCIEX16 slot operates at up to x8 mode when a device is installed in the M2B_CPU or M2C_CPU connector.;
AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode;
AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode;
Chipset;
- 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4_1);
- 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4_2)
Съхранение на данни1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs;
-AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs;
-AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs;
-AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs;
2 x M.2 connectors (M2B_CPU, M2C_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs;
-AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs;
* The M2B_CPU and M2C_CPU connectors become unavailable when an AMD Ryzen™ 8000 Series-Phoenix 1/Phoenix 2 processor is used.;
1 x M.2 connector (M2D_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSDs;
4 x SATA 6Gb/s connectors;
RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices;
* RAID 5 is only available on AMD Ryzen™ 9000 Series Processors.;
RAID 0, RAID 1, and RAID 10 support for SATA storage devices
Тип паметSupport for DDR5 8600(OC) / 8400(OC) / 8200(OC) / 8000(OC) / 7800(OC) / 7600(OC) / 7200(OC) / 7000(OC) / 6800(OC) / 6666(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules;
4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory;
Dual channel memory architecture;
Support for ECC and non-ECC Un-buffered DIMM memory modules;
Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules;
(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)
Портове на задния панелCPU+ASMedia USB4® controller;
- 2 x USB4® USB Type-C® ports on the back panel;
CPU;
- 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel Chipset+USB 3.2 Gen 1 Hub;
- 4 x USB 3.2 Gen 1 ports on the back panel;
Chipset;
- 1 x USB Type-C® port with USB 3.2 Gen 2x2 support, available through the internal USB header;
- 3 x USB 3.2 Gen 2 Type-A ports (red) on the back panel;
- 4 x USB 3.2 Gen 1 ports available through the internal USB headers;
- 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
КонекториiTE® I/O Controller Chip;
1 x 24-pin ATX main power connector;
2 x 8-pin ATX 12V power connectors;
1 x CPU fan header;
1 x CPU fan/water cooling pump header;
4 x system fan headers;
2 x system fan/water cooling pump headers;
4 x addressable RGB Gen2 LED strip headers;
1 x RGB LED strip header;
4 x M.2 Socket 3 connectors;
4 x SATA 6Gb/s connectors;
1 x front panel header;
1 x front panel audio header;
1 x USB Type-C® header, with USB 3.2 Gen 2x2 support;
2 x USB 3.2 Gen 1 headers;
2 x USB 2.0/1.1 headers;
1 x noise detection header;
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only);
1 x HDMI port (Note);
1 x power button;
1 x reset button;
1 x reset jumper;
1 x Clear CMOS jumper;
2 x temperature sensor headers;
Voltage Measurement Points;
(Note) Actual support may vary by CPU.;

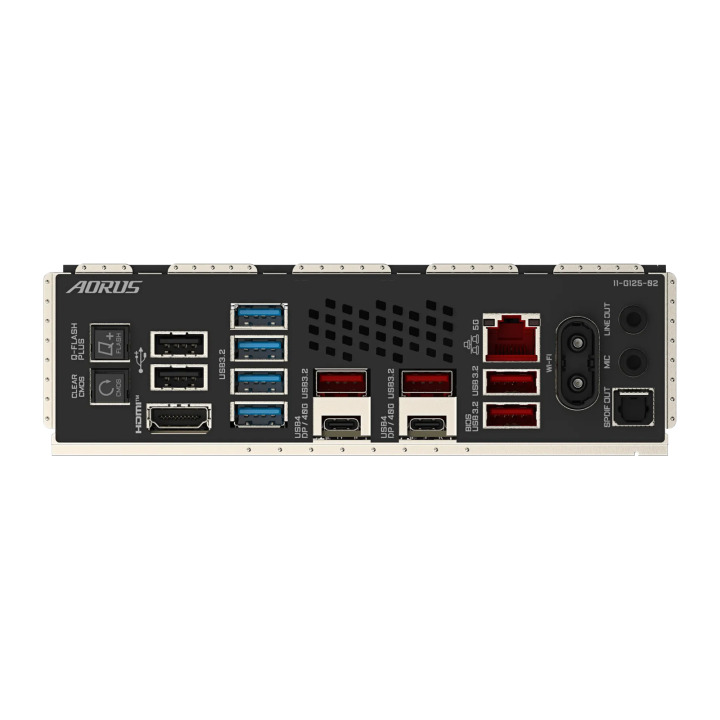

Back Panel Connectors: 1 x Q-Flash Plus button;
1 x Clear CMOS button;
1 x HDMI port (Note);
2 x USB4® USB Type-C® ports (DisplayPorts (Note));
4 x USB 3.2 Gen 2 Type-A ports (red);
4 x USB 3.2 Gen 1 ports;
2 x
ЗвукRealtek® ALC1220 CODEC;
* The back panel line out jack supports DSD audio.;
Support for DTS:X® Ultra;
High Definition Audio;
2/4/5.1/7.1-channel;
* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.;
Support for S/PDIF Out
Мрежа (LAN)Realtek® 5GbE LAN chip (5 Gbps/2.5 Gbps/1 Gbps/100 Mbps)

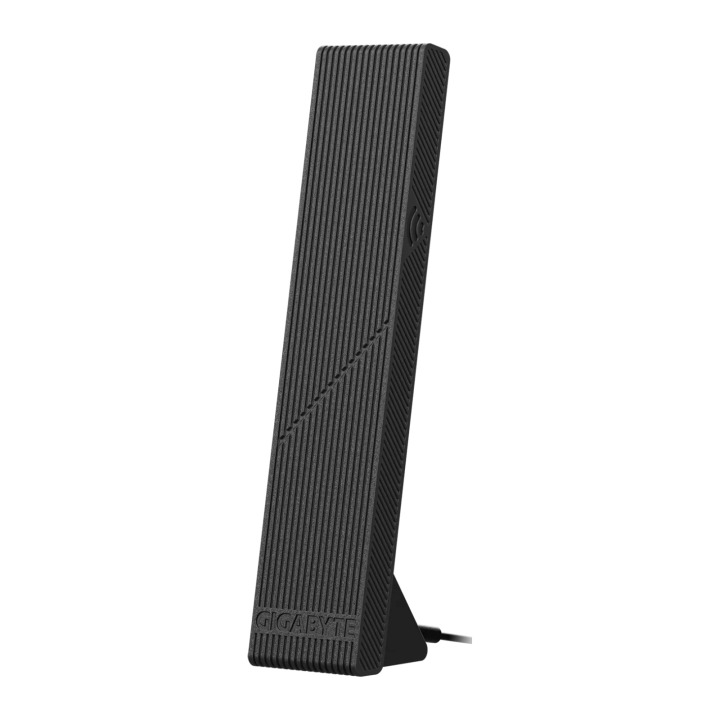

Безжична връзкаQualcomm® Wi-Fi 7 QCNCM865;
- 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands;
- BLUETOOTH 5.3;
- Support for 11be 320MHz wireless standard;
(Actual data rate may vary depending on environment and equipment.);
* Wi-Fi 7 features require Windows 11 SV3 to function properly. (There is no support driver for Windows 10.);
** Wi-Fi 7 channels on 6 GHz band availability depends on individual country's regulations.
BIOS1 x 256 Mbit flash;
Use of licensed AMI UEFI BIOS;
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Форм-факторATX Form Factor;
30.5cm x 24.4cm
Операционна системаSupport for Windows 11 64-bit
Гаранция3 години

  • Марка
  • Референция
    X870E AORUS MASTER 1.0
  • EAN13
    4719331864354
  • MPN
    X870E AORUS MASTER 1.0
