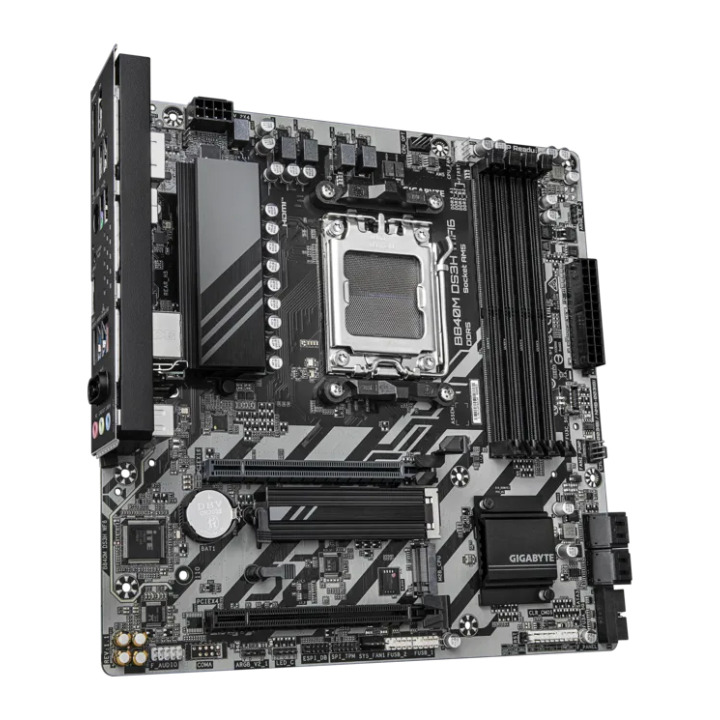

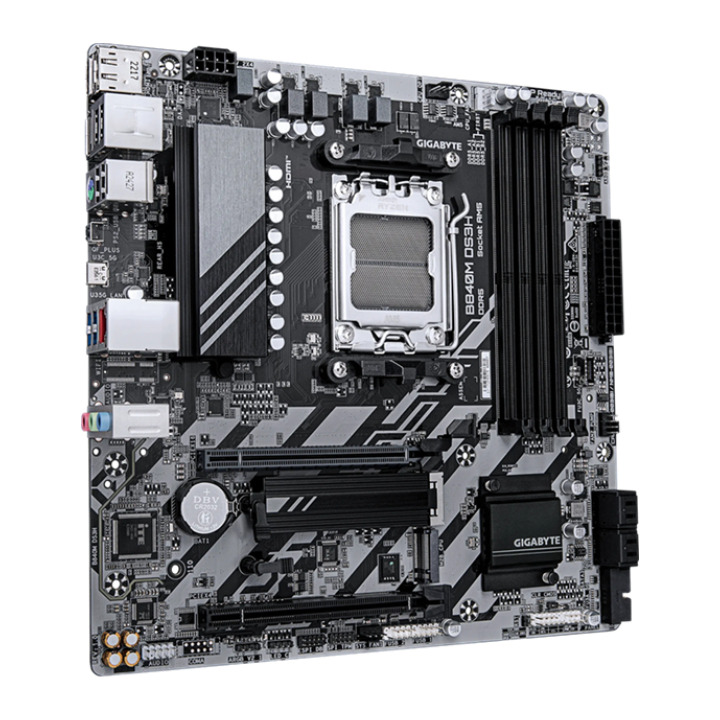

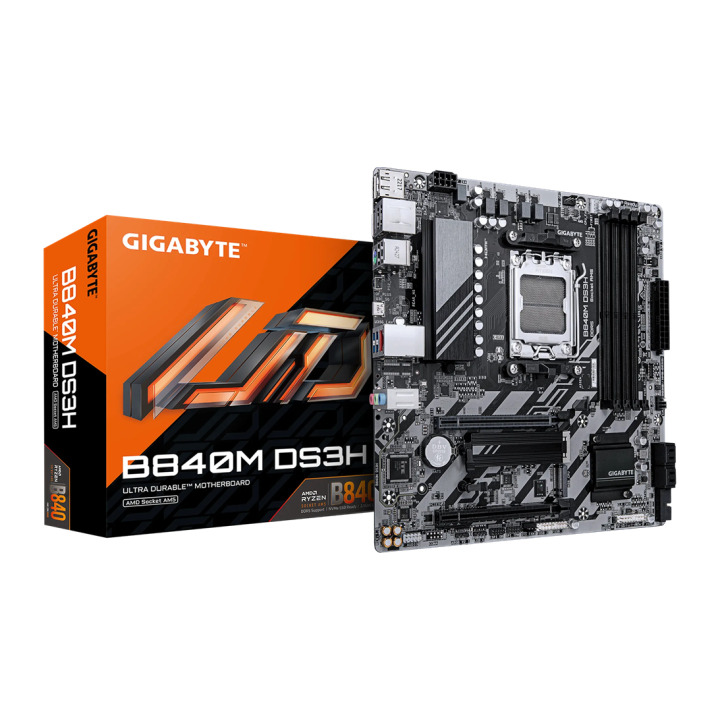

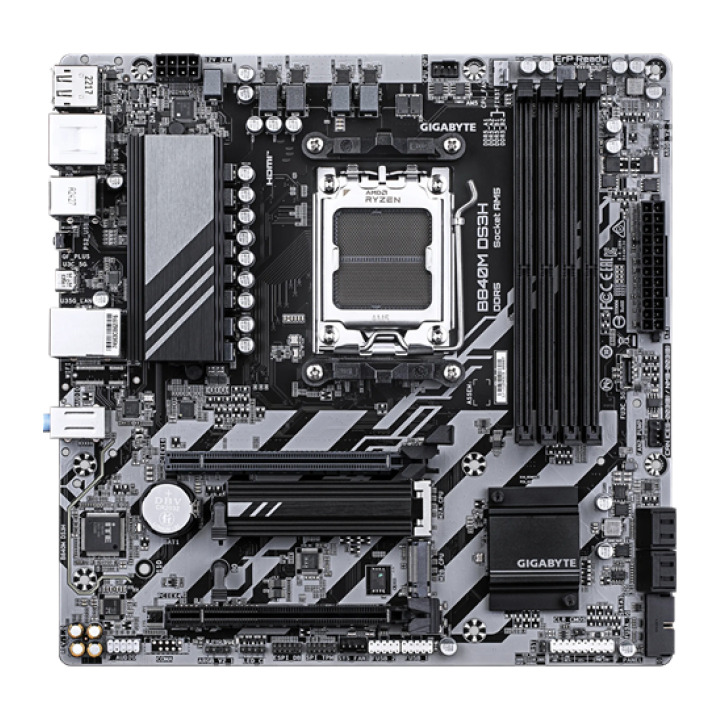

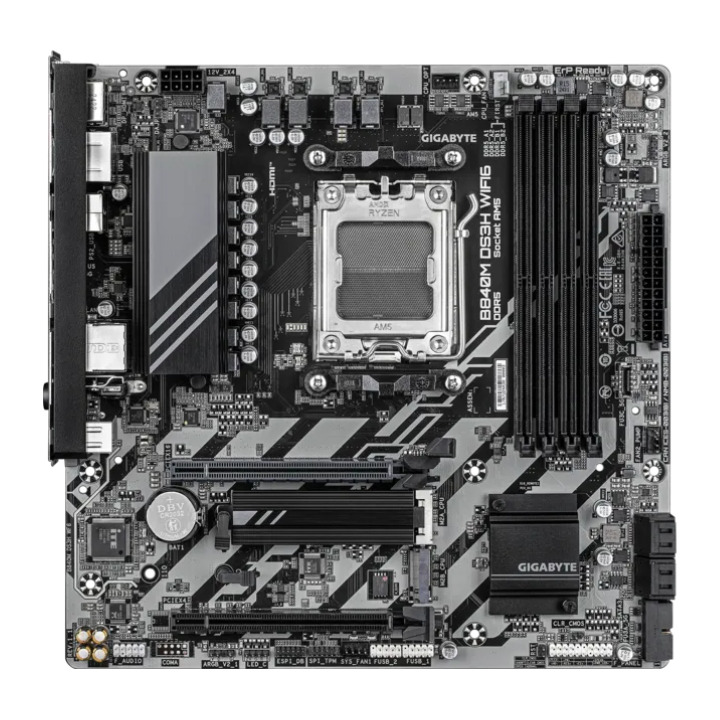

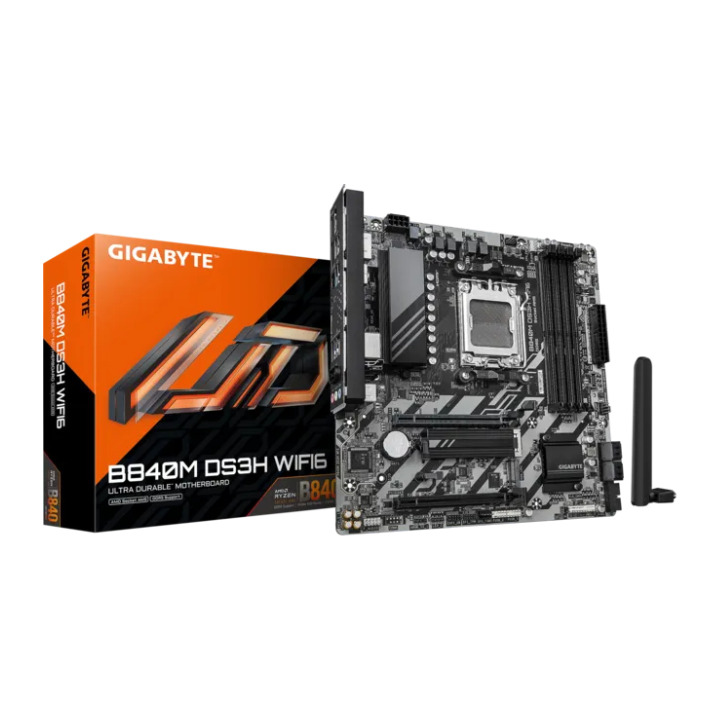

Дънна платка GIGABYTE GB B840M DS3H WF6 / AM5

GIGABYTE
144,24 €
с включено ДДС
В наличност
  • Сокет на процесора: AM5
  • Брой слотове за памет DDR5: 4
  • Брой SATA3 портове за диск: 4
  • Тип: Поддържа RAID
  • Тип: Наличие на HDMI изход
  • Тип: Наличие на 2 броя Display port изход
  • Тип: 2 броя M.2 слотове
  • Гаранция: 3 години
Споделяне

ПроизводителGIGABYTE
ГрафикаIntegrated Graphics Processor with AMD Radeon™ Graphics support:;
- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz;
* Support for HDMI 2.1 version, HDCP 2.3, and HDR.;
** Support for native HDMI 2.1 TMDS compatible ports.;
- 2 x DisplayPorts, supporting a maximum resolution of 3840x2160@144 Hz;
* Support for DisplayPort 1.4 version.;
Support for up to triple-display at the same time;
(Graphics specifications may vary depending on CPU support.)
Поддържани процесориAMD Socket AM5, support for:;
AMD Ryzen™ 9000 Series Processors/;
AMD Ryzen™ 8000 Series Processors/;
AMD Ryzen™ 7000 Series Processors
ЧипсетAMD B840
Слотове за разширение1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:;
AMD Ryzen™ 9000/7000 Series Processors support PCIe 4.0 x16 mode;
AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode;
AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode;
* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.;
Chipset:;
- 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4)
Съхранение на данни1 x M.2 connector (M2A_CPU), , integrated in the CPU, supporting Socket 3, M key, type 2580/2280 SSDs:;
AMD Ryzen™ 9000/7000 Series Processors support PCIe 4.0 x4/x2 SSDs;
AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs;
AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs;
1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type, type 25110/22110/2580/2280 SSDs:;
AMD Ryzen™ 9000/7000 Series Processors support PCIe 4.0 x4/x2 SSDs;
AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs;
AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDs;
4 x SATA 6Gb/s connectors;
RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices;
* RAID 5 is only available on AMD Ryzen™ 9000 Series Processors.;
RAID 0, RAID 1, and RAID 10 support for SATA storage devices
Тип паметSupport for DDR5 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(OC)/ 7000(OC)/ 6800(OC)/ 6666(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5600(OC)/ 5200/ 4800/ 4400 MT/s memory modules;
4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory;
Dual channel memory architecture;
Support for non-ECC Un-buffered DIMM 1Rx8/ 2Rx8/ 1Rx16 memory modules;
Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules

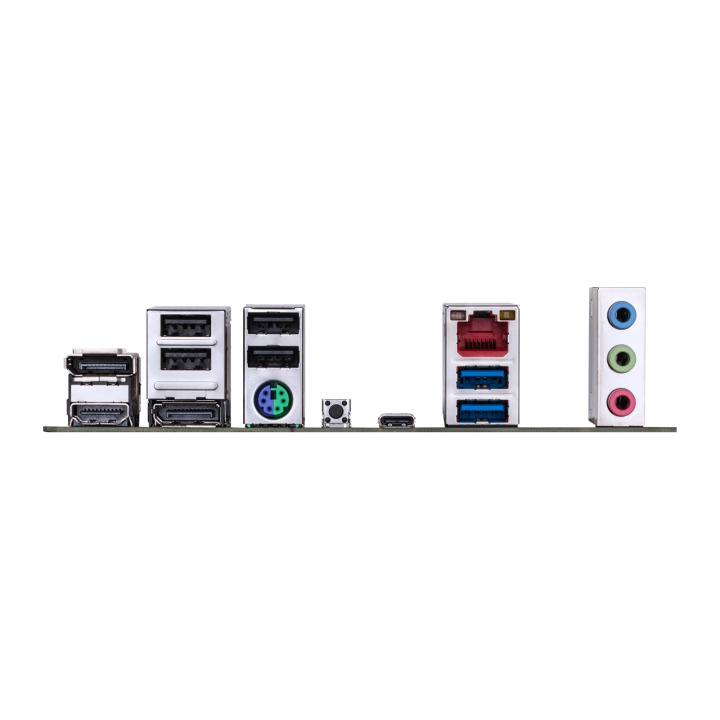

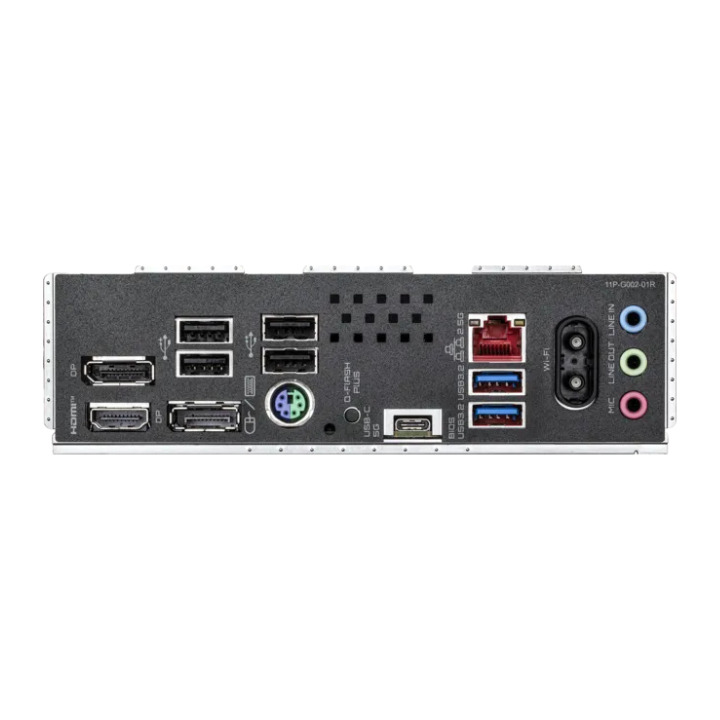

Портове на задния панелiTE® I/O Controller Chip
USBCPU:;
- 1 x USB Type-C® port, with USB 3.2 Gen 1 support on the back panel;
- 1 x USB 3.2 Gen 1 port on the back panel;
CPU+USB 2.0 Hub:;
- 4 x USB 2.0/1.1 ports on the back panel;
Chipset:;
- 1 x USB Type-C® port, with USB 3.2 Gen 1 support, available through the internal USB header;
- 3 x USB 3.2 Gen 1 ports (1 port on the back panel, 2 port available through the internal USB header);
- 4 x USB 2.0/1.1 ports available through the internal USB headers
Конектори1 x 24-pin ATX main power connector;
1 x 8-pin ATX 12V power connector;
1 x CPU fan header;
1 x CPU fan/water cooling pump header;
1 x system fan header;
1 x system fan/water cooling pump header;
2 x addressable RGB Gen2 LED strip headers;
1 x RGB LED strip header;
4 x SATA 6Gb/s connectors;
2 x M.2 Socket 3 connectors;
1 x front panel header;
1 x front panel audio header;
1 x USB Type-C® header, with USB 3.2 Gen 1 support;
1 x USB 3.2 Gen 1 header;
2 x USB 2.0/1.1 headers;
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only);
1 x reset jumper;
1 x Clear CMOS jumper;
1 x HDMI port (Note);
2 x DisplayPorts (Note);
1 x Q-Flash Plus button;
1 x PS/2 keyboard/mouse port;
1 x USB Type-C® port, with USB 3.2 Gen 1 support;
2 x USB 3.2 Gen 1 ports;
4 x USB 2.0/1.1 ports;
2 x antenna connectors (1T1R);
1 x RJ-45 port;
3 x audio jacks
ЗвукRealtek® Audio CODEC;
High Definition Audio;
2/4/5.1/7.1-channel
Мрежа (LAN)Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Безжична връзкаRealtek® Wi-Fi 6 RTL8851BE;
- WIFI a, b, g, n, ac, ax, supporting 2.4/5 GHz carrier frequency bands;
- BLUETOOTH 5.3;
- Support for 11ax 80MHz wireless;
(Actual data rate may vary depending on environment and equipment.)
Bluetooth5,3
BIOS1 x 256 Mbit flash;
Use of licensed AMI UEFI BIOS;
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Форм-факторMicro ATX Form Factor;
24.4cm x 24.4cm
Операционна системаSupport for Windows 11 64-bit;
Support for Windows 10 64-bit
Гаранция3 години

  • Марка
  • Референция
    B840M DS3H WF6 1.1
  • MPN
    B840M DS3H WF6 1.1
Плащане с наложен платеж
Плащане при получаване
Еконт и Спиди
Доставка до адрес или офис
14 дни право на връщане
При покупка онлайн
