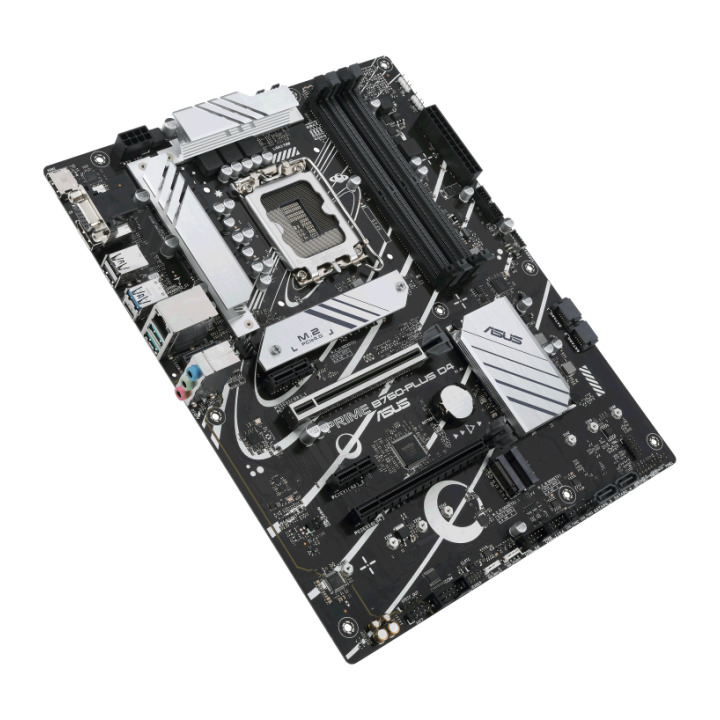

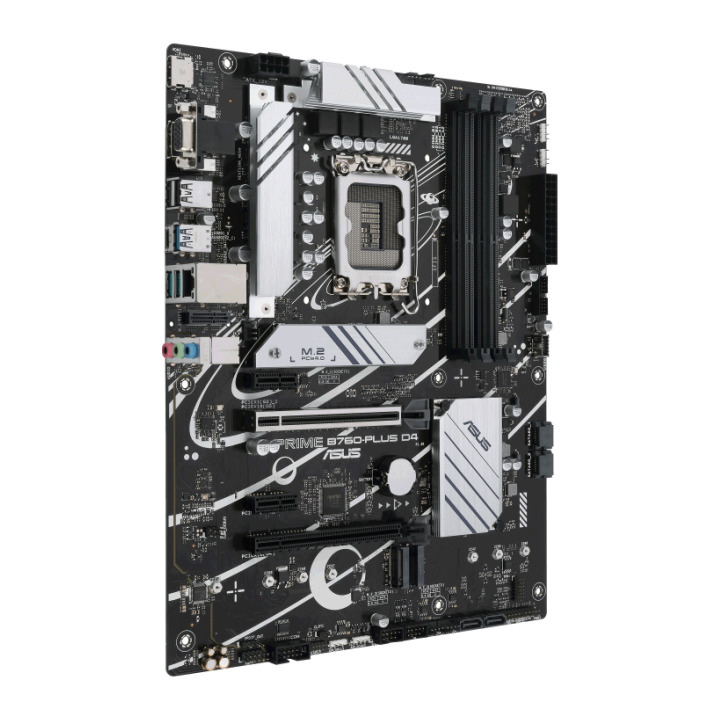

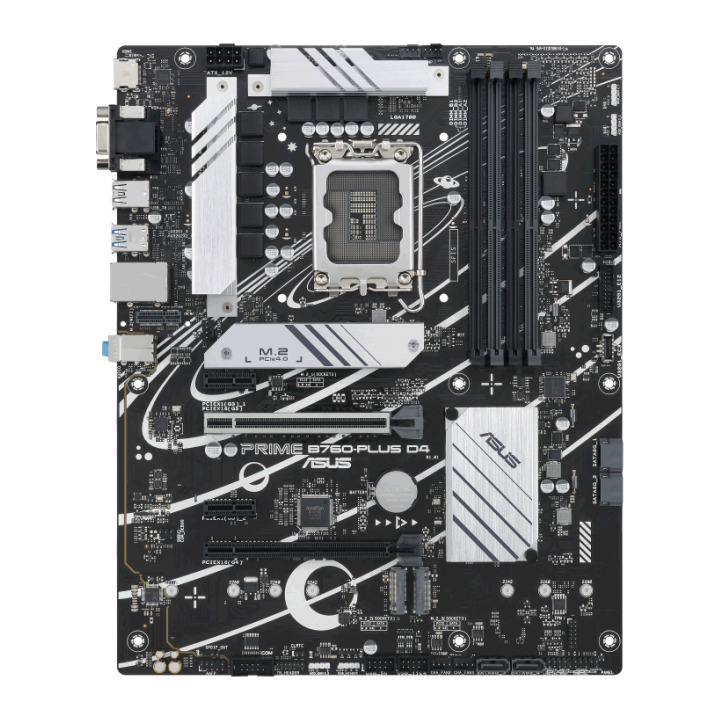

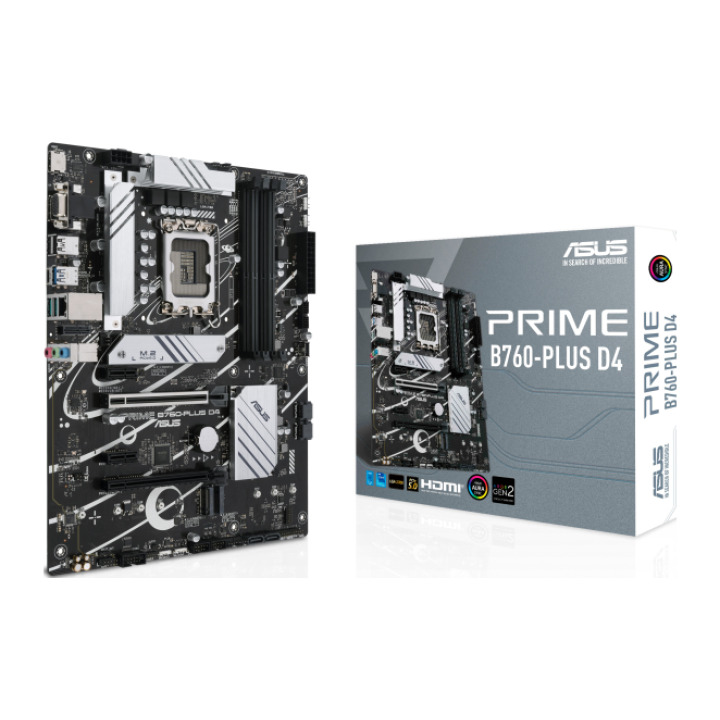

Дънна платка ASUS PRIME B760-PLUS D4 Изображения
| Графика | 1 x DisplayPort**; 1 x VGA port; 1 x HDMI port*** |
|---|---|
| Чипсет | Intel B760 Chipset |
| Слотове за разширение | Intel 13th & 12th Gen Processors*; 1 x PCIe 5.0 x16 slot; Intel B760 Chipset; 1 x PCIe 4.0 x16 slot (supports x4 mode); 2 x PCIe 3.0 x1 slots |
| Съхранение на данни | Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports*; Intel 13th & 12th Gen Processors; M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode); Intel B760 Chipset; M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode); M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x2 mode); 4 x SATA 6Gb/s ports |
| Тип памет | 4 x DIMM, Max. 128GB, DDR4 5066(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory*; Dual Channel Memory Architecture; Supports Intel Extreme Memory Profile (XMP); OptiMem |

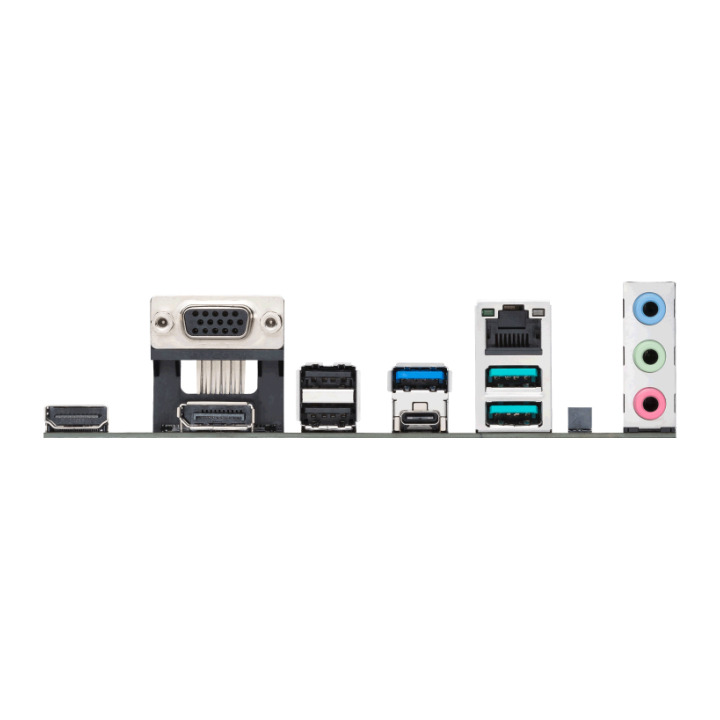

| Портове на задния панел | 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C); 2 x USB 3.2 Gen 2 ports (2 x Type-A); 1 x USB 3.2 Gen 1 port (1 x Type-A); 2 x USB 2.0 ports (2 x Type-A); 1 x DisplayPort; 1 x VGA port; 1 x HDMI port; 1 x Vertical M.2 slot (Key E); 1 x Realtek 2.5Gb Ethernet port; 3 x Audio jacks |
| Конектори | 1 x 4-pin CPU Fan header; 1 x 4-pin AIO Pump header; 3 x 4-pin Chassis Fan headers; 1 x 24-pin Main Power connector; 1 x 8-pin +12V Power connector; 3 x M.2 slots (Key M); 4 x SATA 6Gb/s ports; 1 x USB 3.2 Gen 1 connector (supports USB Type-C ); 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports; 2 x USB 2.0 headers support 4 additional USB 2.0 ports; 3 x Addressable Gen 2 headers; 1 x Aura RGB header; 1 x Clear CMOS header; 1 x COM Port header; 1 x Front Panel Audio header (AAFP); 1 x S/PDIF Out header; 1 x SPI TPM header (14-1pin); 1 x 20-3 pin System Panel header with Chassis intrude function; 1 x Thunderbolt (USB4) header |
| Звук | Realtek 7.1 Surround Sound High Definition Audio CODEC*; - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking; - Supports до 24-Bit/192 kHz playback; Audio Features; - Audio Shielding; - Premium audio capacitors; - Dedicated audio PCB layers |
| Мрежа (LAN) | 1 x Realtek 2.5Gb Ethernet |
| BIOS | 128 Mb Flash ROM, UEFI AMI BIOS |
| Форм-фактор | ATX Form Factor; 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
| Операционна система | Windows 11, Windows 10 64-bit |
| Други | Vertical M.2 slot only (Key E, CNVi & PCIe)* |
| Гаранция | 3 години |
