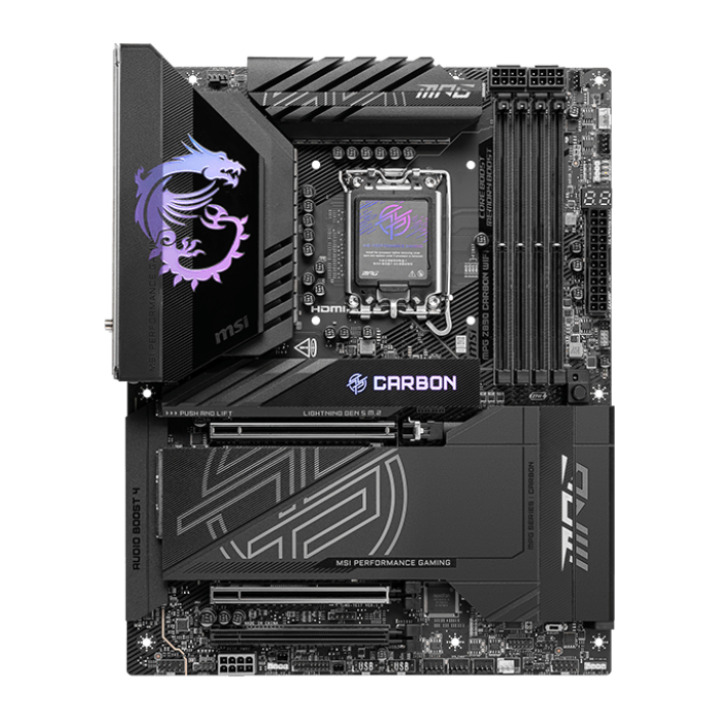

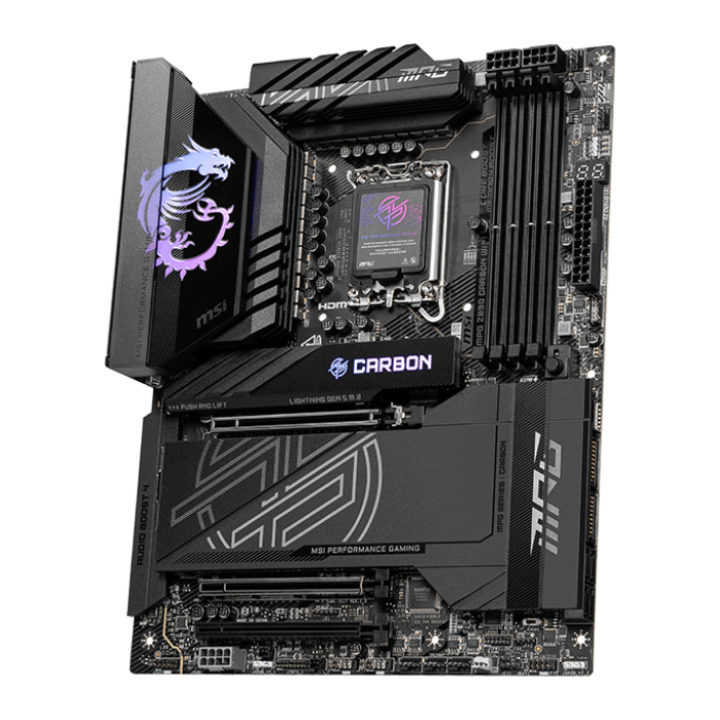

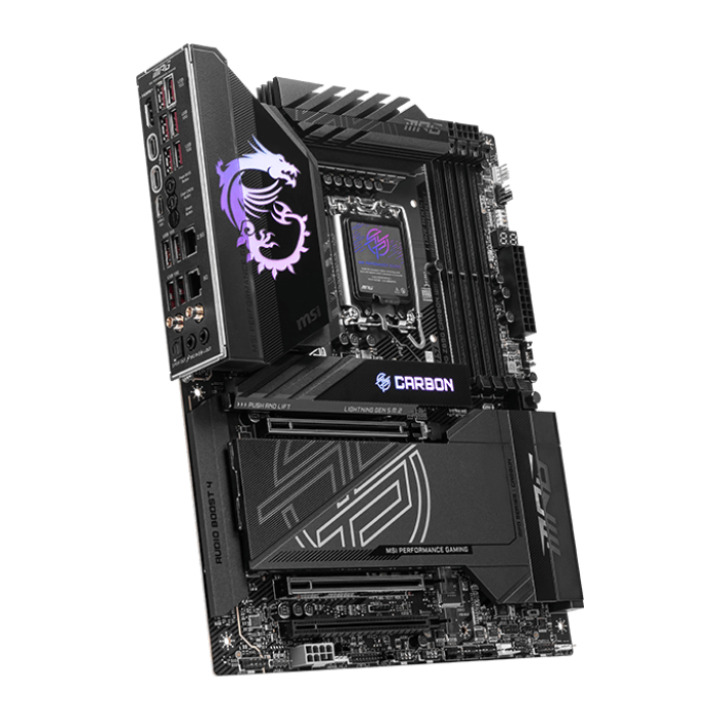

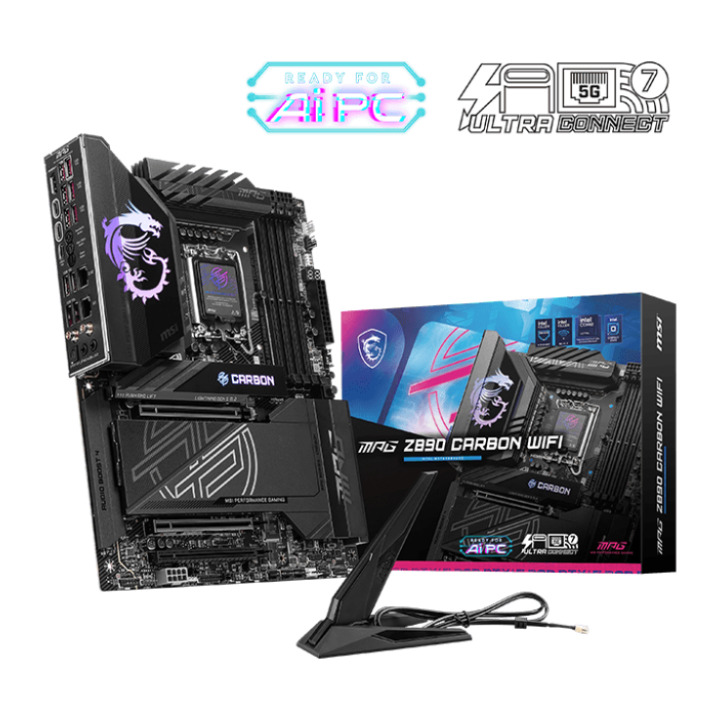

Дънна платка MSI MPG Z890 CARBON WIFI /1851 Изображения
| Графика | 1x HDMI; Support HDMITM 2.1 with FRL port, maximum resolution of 8K 60Hz; 2x Type-C DisplayPort; ThundeboltTM 4 ports, supporting DisplayPort 2.1 with UHBR20 over USB Type-C, with a maximum resolution of 4K@120Hz / 8K@60Hz |
|---|---|
| Чипсет | INTEL Z890 |
| Слотове за разширение | 3x PCI-E x16 slot; PCI_E1 Gen PCIe 5.0 supports до x16 (From CPU); PCI_E2 Gen PCIe 5.0 supports до x8 (From CPU); PCI_E3 Gen PCIe 4.0 supports до x4 (From Chipset); • PCI_E1 supports BIOS adjustment to x8+x4+x4; • PCI_E2 supports BIOS adjustment to x4+x4 |
| Съхранение на данни | 5x M.2; -M.2_1 Source (From CPU) supports до PCIe 5.0 x4 , supports 2280/2260 devices; -M.2_2 Source (From CPU) supports до PCIe 4.0 x4 , supports 2280/2260 devices; -M.2_3 Source (From Chipset) supports до PCIe 4.0 x4 , supports 2280/2260 devices; -M.2_4 Source (From Chipset) supports до PCIe 4.0 x4 , supports 22110/2280/2260 devices; -M.2_5 Source (From Chipset) supports до PCIe 4.0 x4 / SATA mode, supports 2280/2260 devices; 4x SATA 6G; Supports RAID 0, RAID 1, RAID 5 and Raid 10 for SATA storage devices; Supports RAID 0, RAID 1, RAID 5 and Raid 10 for M.2 NVMe storage devices |
| Тип памет | 4x DDR5 UDIMM, Maximum Memory Capacity 256GB; Memory Support 9200 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s; Максимална честота при овърклок:; • 1DPC 1R Max speed до 9200+ MT/s; • 1DPC 2R Max speed до 7200+ MT/s; • 2DPC 1R Max speed до 4800+ MT/s; • 2DPC 2R Max speed до 4800+ MT/s; Supports Intel POR Speed and JEDEC Speed; Supports Memory Overclocking and Intel XMP 3.0; Supports Dual-Controller Dual-Channel mode; Supports Non-ECC, Un-buffered memory; Supports CUDIMM |

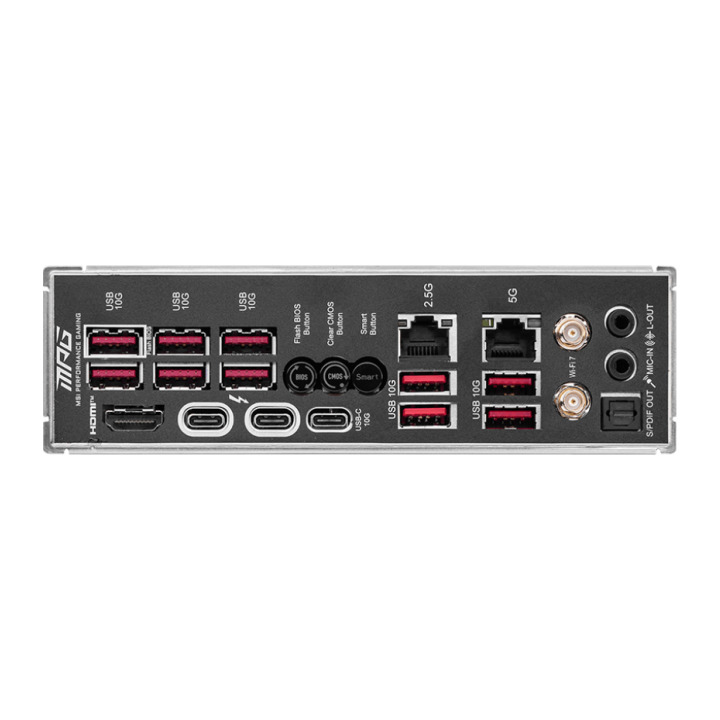

| Портове на задния панел | 2x Thunderbolt4 ports (Rear); Supports до 40Gbps transfer rate with Thunderbolt devices; Supports до 20Gbps transfer rate with USB4 devices; Supports до 10Gbps transfer rate with USB 3.2 devices; Supports до 5V/3A,15W power charging; Each port can daisy-chain до three Thunderbolt 4 devices or five Thunderbolt 3 devices; Supports до 8K display; 4x USB 2.0 (Front); 4x USB 5Gbps Type A (Front); 10x USB 10Gbps Type A (Rear); 1x USB 10Gbps Type C (Rear); 1x USB 20Gbps Type C (Front) |
| Конектори | 1x Power Connector(ATX_PWR); 2x Power Connector(CPU_PWR); 1x Power Connector(PCIE_PWR 8pin); 1x Front Type-C Quick Charge Connector(PD_PWR1); 1x CPU Fan; 1x Combo Fan (Pump_Sys Fan); 5x System Fan; 1x EZ Conn-header (JAF_2); 2x Front Panel (JFP); 1x Chassis Intrusion (JCI); 1x Water Flow connector; 1x Front Audio (JAUD); 1x Thermal Sensor connectors(T_SEN); 3x Addressable V2 RGB LED connector (JARGB_V2); 1x RGB LED connector(JRGB); 1x TPM pin header(Support TPM 2.0); 4x USB 2.0 ports; 4x USB 5Gbps Type A ports; 1x USB 20Gbps Type C ports |
| Звук | Realtek ALC1220P Codec; 7.1-Channel USB High Defination Audio; Supports S/PDIF output |
| Мрежа (LAN) | 1x Intel Killer E5000B 5G LAN; 1x Intel I226V 2.5G LAN |
| Безжична връзка | Intel Killer BE1750x Wi-Fi 7; The Безжичен module is pre-installed in the M.2 (Key-E) slot; Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) до 5.8Gbps; Supports 802.11 a/ b/ g/ n/ ac/ ax/ be |
| Bluetooth | 5.4 |
| Форм-фактор | ATX 243.84mmx304.8mm |
| Операционна система | Support for Windows 11 64-bit |
| Гаранция | 3 години |
