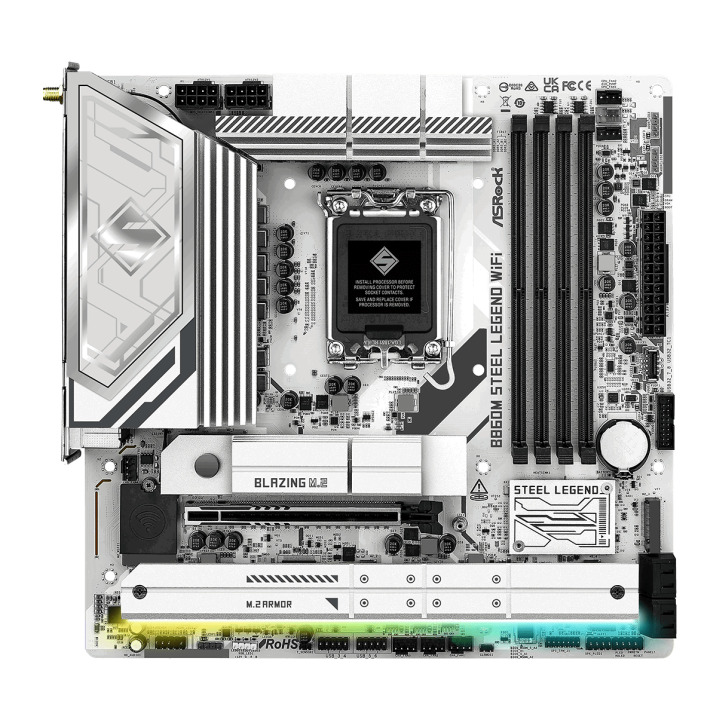

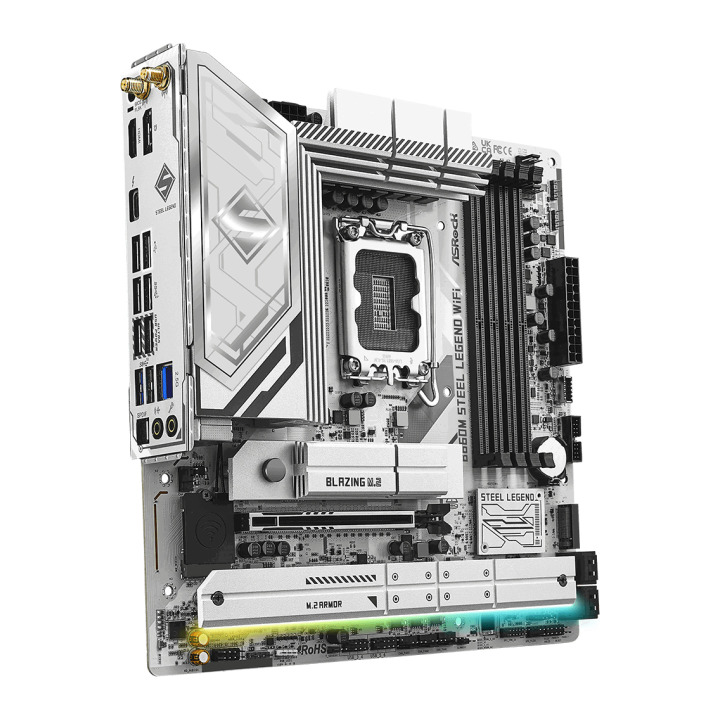

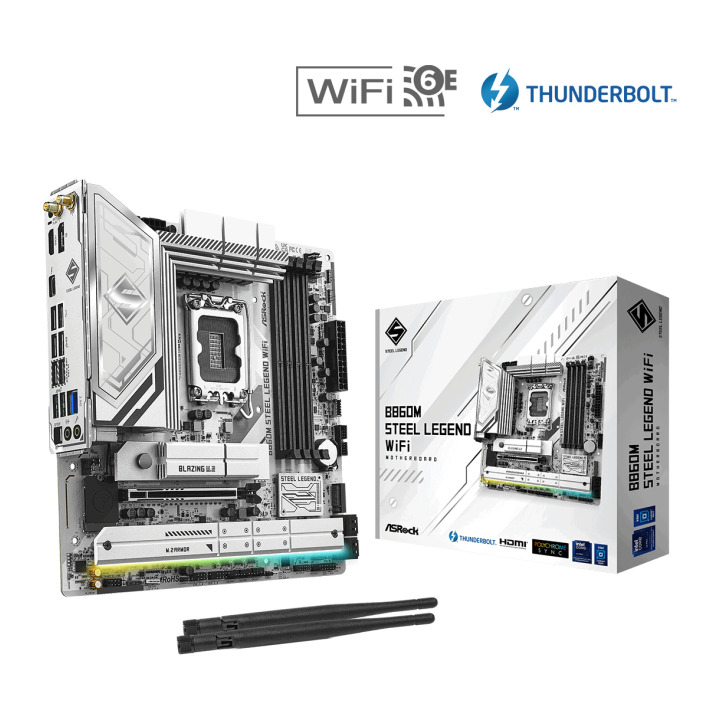

Дънна платка ASROCK B860M STEEL LEGEND WIFI

Name: Дънна платка ASROCK B860M STEEL LEGEND WIFI
Brand: ASRock
SKU: B860M STEEL LEGEND WIFI
Price: 194.7 EUR
Availability: InStock

ASRock

194,70 €

с включено ДДС

Сокет на процесора: LGA1851
Чипсет: Intel B860
Брой слотове за памет DDR5: 4
Брой SATA3 портове за диск: 4
Тип: Поддържа RAID
Тип: Наличие на HDMI изход
Тип: Наличие на Display port изход
Гаранция: 3 години

Споделяне

Graphics	Intel® Xe LPG Graphics Architecture; - 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz; - 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz; - 1 x Intel® Thunderbolt™ 4, supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz
Chipset	Intel® B860
Expansion slots	CPU:; - 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode; Chipset:; - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVio/CNVio2 (Integrated WiFi/BT)
Storage	CPU:; - 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode; Chipset:; - 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode; - 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode; - 1 x Hyper M.2 Socket (M2_4, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode; - 4 x SATA3 6.0 Gb/s Connectors; Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Memory type	Dual Channel DDR5 Memory Technology; 4 x DDR5 DIMM Slots; Supports DDR5 non-ECC, un-buffered memory up to 8666+(OC); Supports Clocked Unbuffered DIMM (CUDIMM); Max. capacity of system memory: 256GB; Supports Intel® Extreme Memory Profile (XMP) 3.0x

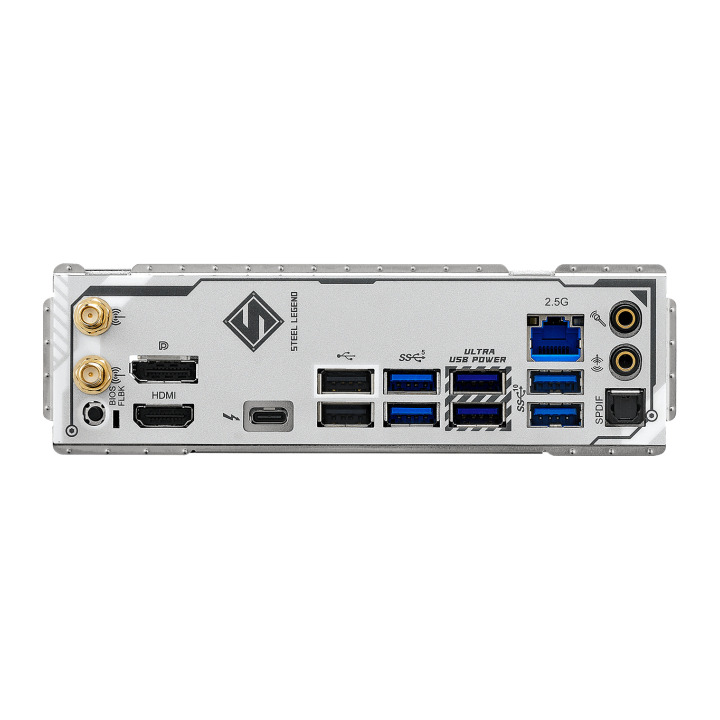

Rear panel I/O	2 x Antenna Ports; 1 x HDMI Port; 1 x DisplayPort 1.4; 1 x Optical SPDIF Out Port; 1 x Thunderbolt™ 4 Type-C Port (40 Gb/s for USB4 protocol; 40Gb/s for Thunderbolt™ protocol); 2 x USB 3.2 Gen2 Type-A Ports (10 Gb/s); 4 x USB 3.2 Gen1 Ports; 2 x USB 2.0 Ports; 1 x RJ-45 LAN Port; 1 x BIOS Flashback Button; 1 x Line Out Jack (Gold Audio Jack); 1 x Microphone Input Jack (Gold Audio Jack)vvv
USB	CPU:; - 1 x Thunderbolt™ 4 Type-C (Rear) Chipset:; - 1 x USB 3.2 Gen2 Type-C (Front); - 2 x USB 3.2 Gen2 Type-A (Rear); - 6 x USB 3.2 Gen1 (4 Rear, 2 Front); - 6 x USB 2.0 (2 Rear, 4 Front)
Connectors	1 x Thermistor Cable Header; 1 x SPI TPM Header; 1 x Power LED and Speaker Header; 1 x RGB LED Header; 3 x Addressable LED Headers; 2 x CPU Fan Connector (4-pin) (Smart Fan Speed Control); 4 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control); 1 x AIO Pump Fan Connector (4-pin) (Smart Fan Speed Control); 1 x 24 pin ATX Power Connector; 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector); 1 x Front Panel Audio Connector; 2 x USB 2.0 Headers (Support 4 USB 2.0 ports); 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports); 1 x Front Panel Type C USB 3.2 Gen2 Header (10 Gb/s)
Audio	7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec); Impedance Sensing on Rear Out port; Individual PCB Layers for R/L Audio Channel; Nahimic Audio
Lan	2.5 Gigabit LAN 10/100/1000/2500 Mb/s; Dragon RTL8125BG; Supports Dragon 2.5G LAN Software; Smart Auto Adjust Bandwidth Control; Visual User Friendly UI; Visual Network Usage Statistics; Optimized Default Setting for Game, Browser, and Streaming Modes; User Customized Priority Control
Wireless	802.11axe Wi-Fi 6E Module; Supports IEEE 802.11a/ b/ g/ n/ ac/ ax/ axe; Supports Dual-Band 2x2 with extended 6GHz band* support; 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology; Supports Bluetooth 5.3; Supports MU-MIMO
Bluetooth	5.3
BIOS	256Mb AMI UEFI Legal BIOS with GUI support
Form factor	Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm; 2oz Copper PCB
OS	Microsoft Windows® 11 64-bit; Software; - ASRock Motherboard Utility (A-Tuning); - ASRock Dragon 2.5G LAN Software; - ASRock Polychrome SYNC; UEFI; - ASRock EZ Mode; - ASRock Full HD UEFI; - ASRock My Favorites in UEFI; - ASRock Auto Driver Installer; - ASRock Instant Flash
Гаранция	3 години

Марка
Референция

B860M STEEL LEGEND WIFI
EAN13

4711581490215
MPN

B860M STEEL LEGEND WIFI

Тип

1 брой PCI Express x16 слот
4 броя M.2 слотове
Наличие на Display port изход
Наличие на HDMI изход
Наличие на WIFI
Поддържа RAID
Чипсет

Intel B860
Брой SATA3 портове за диск

4
Брой слотове за памет DDR5

4
Тип на паметта

DDR5
Сокет на процесора

LGA1851
Гаранция

3 години
