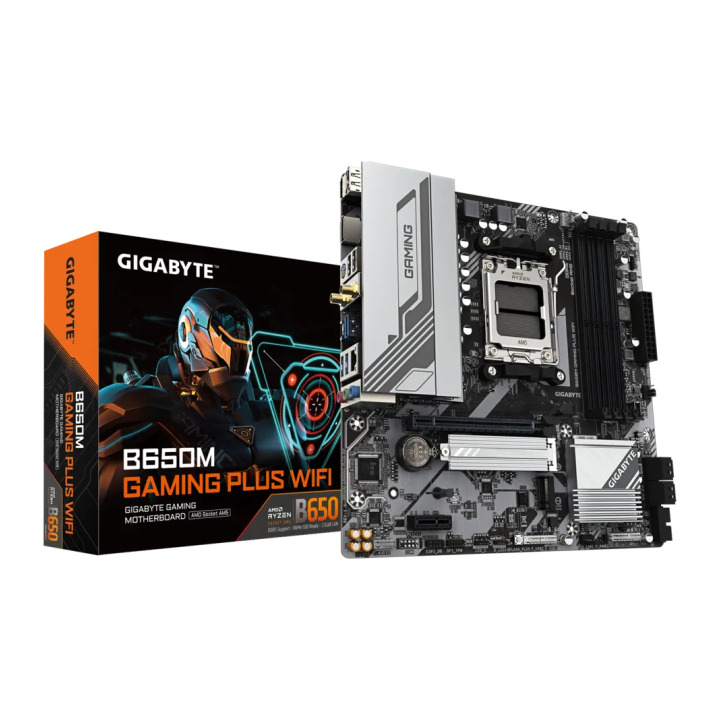

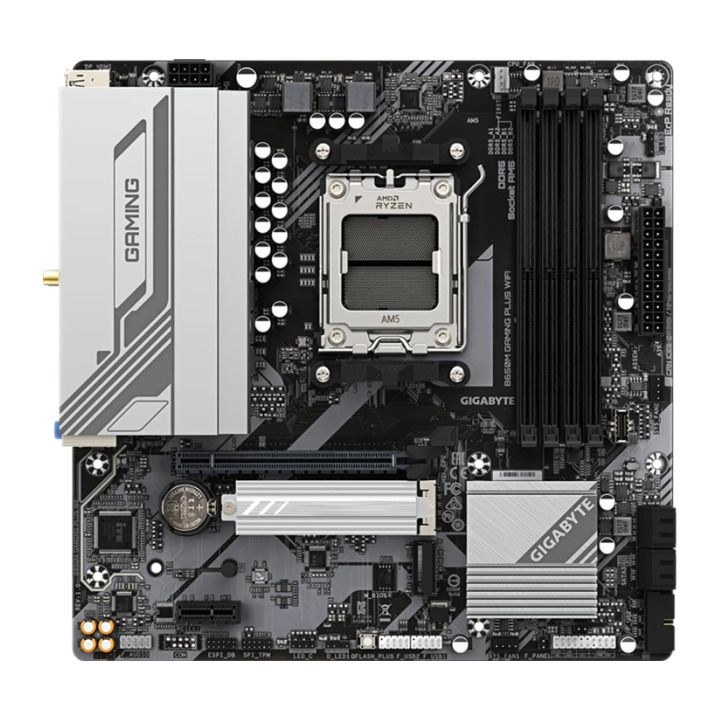

GIGABYTE GB B650M GAMING PLUS WF /AM5
GIGABYTE GB B650M GAMING PLUS WF /AM5

Дънна платка GIGABYTE GB B650M GAMING PLUS WF /AM5

GIGABYTE
145,31 €
с включено ДДС
В наличност
  • Сокет на процесора: AM5
  • Чипсет: AMD B650
  • Брой слотове за памет DDR5: 4
  • Брой SATA3 портове за диск: 4
  • Тип: Поддържа RAID
  • Тип: Наличие на HDMI изход
  • Тип: Наличие на 2 броя Display port изход
  • Гаранция: 3 години
Споделяне

ПроизводителGIGABYTE
ГрафикаIntegrated Graphics Processor with AMD Radeon™ Graphics support;
- 2 x DisplayPorts, supporting a maximum resolution of 3840x2160@144 Hz;
* Support for DisplayPort 1.4 version.;
- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz;
* Support for HDMI 2.1 version and HDCP 2.3.;
** Support for native HDMI 2.1 TMDS compatible ports.;
Support for up to triple-display at the same time
Поддържани процесориAMD Socket AM5, support for:;
AMD Ryzen™ 7000 / Ryzen™ 8000 / Ryzen™ 9000 Series Processors
ЧипсетAMD B650
Слотове за разширение1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:;
- AMD Ryzen™ 7000 Series Processors/ Ryzen™ 9000 Series Processors support PCIe 4.0 x16 mode;
- AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode;
- AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode;
* The PCIEX16 slot can only support a graphics card or an NVMe SSD.;
Chipset:;
- 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 (PCIEX1)
Съхранение на данни1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2580 SSDs:;
- AMD Ryzen™ 7000 Series Processors/ Ryzen™ 9000 Series Processors support PCIe 4.0 x4/x2 SSDs;
- AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs;
- AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs;
1 x M.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSDs;
4 x SATA 6Gb/s connectors;
RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices;
RAID 0, RAID 1, and RAID 10 support for SATA storage devices
Тип паметSupport for DDR5 8000(OC)/ 7800(OC)/ 7600(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5600(OC)/ 5200/ 4800 MT/s memory modules;
4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory;
Dual channel memory architecture;
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules;
Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme;
Memory Profile (XMP) memory modules
Портове на задния панелiTE® I/O Controller Chip
USBCPU:;
- 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 1 support;
- 1 x USB 3.2 Gen 1 port on the back panel;
- 1 x USB 2.0/1.1 port on the back panel;
Chipset:;
- 2 x USB 3.2 Gen 1 ports on the back panel;
- 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header;
- 2 x USB 3.2 Gen 1 ports available through the internal USB header;
- 5 x USB 2.0/1.1 ports (1 port on the back panel, 4 ports available through the internal USB headers)
КонекториInternal I/O Connectors;
1 x 24-pin ATX main power connector;
1 x 8-pin ATX 12V power connector;
1 x CPU fan header;
2 x system fan headers;
2 x addressable LED strip headers;
1 x RGB LED strip header;
2 x M.2 Socket 3 connectors;
4 x SATA 6Gb/s connectors;
1 x front panel header;
1 x front panel audio header;
1 x USB Type-C® header, with USB 3.2 Gen 1 support;
1 x USB 3.2 Gen 1 header;
2 x USB 2.0/1.1 headers;
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only);
1 x Q-Flash Plus button;
1 x reset jumper;
1 x Clear CMOS jumper;
Back Panel Connectors;
1 x PS/2 keyboard/mouse port;
1 x USB Type-C® port, with USB 3.2 Gen 1 support;
3 x USB 3.2 Gen 1 ports;
2 x USB 2.0/1.1 ports;
1 x HDMI port;
2 x DisplayPorts;
2 x SMA antenna connectors (2T2R) (1T1R)*;
* Only for Realtek® Wi-Fi 6 RTL8851BE;
1 x RJ-45 port;
3 x audio jacks
ЗвукRealtek® Audio CODEC;
High Definition Audio;
2/4/5.1/7.1-channel
Мрежа (LAN)Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Безжична връзкаRealtek® Wi-Fi 6E RTL8852CE (PCB rev. 1.0);
- WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands;
- BLUETOOTH 5.3;
- Support for 11ax 160MHz wireless;
Realtek® Wi-Fi 6 RTL 8851BE (PCB rev. 1.1);
- WIFI a, b, g, n, ac, ax, supporting 2.4/5 GHz carrier frequency bands;
- BLUETOOTH 5.3;
- Support for 11ax 80MHz wireless
Bluetooth5.3
BIOS1 x 256 Mbit flash;
Use of licensed AMI UEFI BIOS;
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Форм-факторMicro ATX Form Factor;
24.4cm x 24.4cm
Операционна системаSupport for Windows 11 64-bit;
Support for Windows 10 64-bit
Гаранция3 години

  • Марка
  • Референция
    B650M GAMING PLUS WF 1.3
  • EAN13
    4719331862213
  • MPN
    B650M GAMING PLUS WF 1.3
Плащане с наложен платеж
Плащане при получаване
Еконт и Спиди
Доставка до адрес или офис
14 дни право на връщане
При покупка онлайн
