GIGABYTE GB X870 GAMING WF6 /AM5
GIGABYTE GB X870 GAMING WF6 /AM5
GIGABYTE GB X870 GAMING WF6 /AM5
GIGABYTE GB X870 GAMING WF6 /AM5

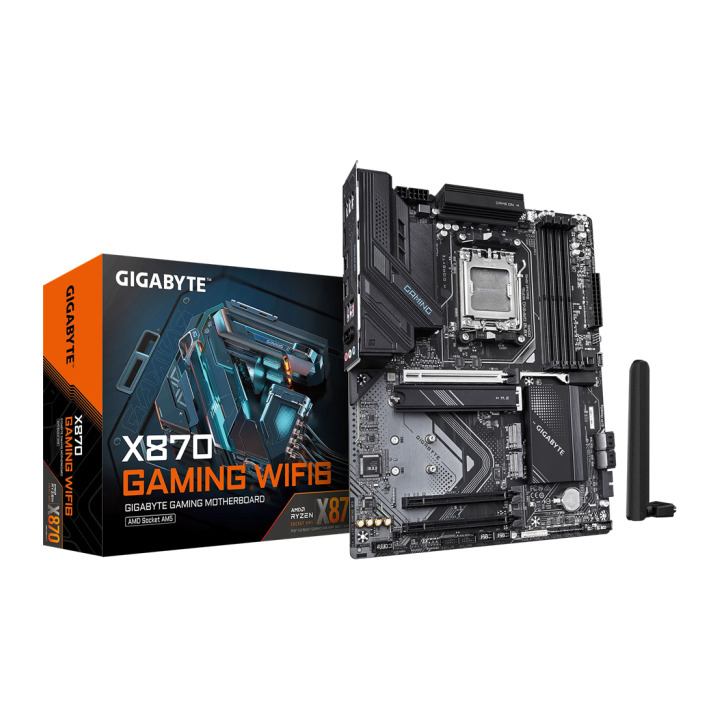

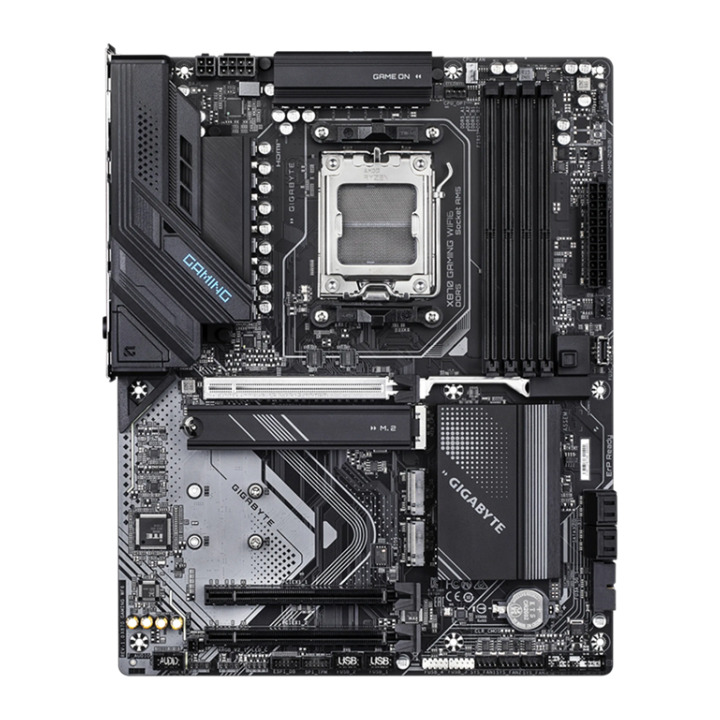

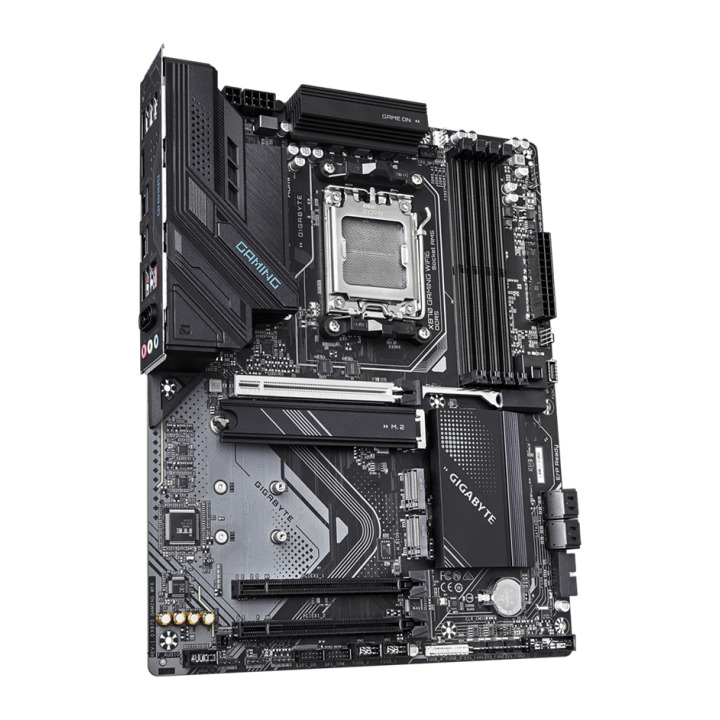

Дънна платка GIGABYTE GB X870 GAMING WF6 /AM5

GIGABYTE
231,64 €
с включено ДДС
В наличност
  • Сокет на процесора: AM5
  • Чипсет: AMD X870
  • Брой слотове за памет DDR5: 4
  • Брой SATA3 портове за диск: 4
  • Тип: Поддържа RAID
  • Тип: Наличие на HDMI изход
  • Тип: 3 броя M.2 слотове
  • Гаранция: 3 години
Споделяне

ПроизводителGIGABYTE
ГрафикаIntegrated Graphics Processor with AMD Radeon™ Graphics support+ASMedia USB4® Controller;
- 2 x USB4® USB Type-C® ports, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160@240 Hz;
* Support for DisplayPort 1.4 version and HDR.;
Integrated Graphics Processor with AMD Radeon™ Graphics support;
- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz;
* Support for HDMI 2.1 version, HDCP 2.3, and HDR.;
** Support native HDMI 2.1 TMDS compatible ports.;
(Graphics specifications may vary depending on CPU support.)
Поддържани процесориAMD Socket AM5, support for;
-AMD Ryzen™ 9000 Series Processors/;
-AMD Ryzen™ 8000 Series Processors/;
-AMD Ryzen™ 7000 Series Processors
ЧипсетAMD X870
Слотове за разширение1 x PCI Express x16 slot (PCIEX16), integrated in the CPU;
-AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x16 mode;
-AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode;
-AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode;
* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.;
Chipset;
- 2 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1/2)
Съхранение на данни1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/ 22110/ 2580/ 2280 SSDs;
-AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs;
-AMD Ryzen™ 8000 Series- Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs;
-AMD Ryzen™ 8000 Series- Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs;
1 x M.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0 x2 SSDs;
1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0 x4/x2 SSDs;
* The M2B_SB connector shares bandwidth with the M2C_SB connector. The M2C_SB connector will become unavailable when an PCIe 4.0 x4 SSD is installed in the M2B_SB connector.;
4 x SATA 6Gb/s connectors;
RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices;
* RAID 5 is only available on AMD Ryzen™ 9000 Series Processors.;
RAID 0, RAID 1, and RAID 10 support for SATA storage devices
Тип паметSupport for DDR5;
8200(OC)/ 8000(OC)/ 7800(OC)/ 7600(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6666(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5600(OC)/ 5200/ 4800/ 4400 MT/s memory modules;
4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory;
Dual channel memory architecture;
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules;
Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules;
(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)
Портове на задния панелiTE® I/O Controller Chip
КонекториInternal I/O Connectors;
-1 x 24-pin ATX main power connector;
-1 x 8-pin ATX 12V power connector;
-1 x 4-pin ATX 12V power connector;
-1 x CPU fan header;
-1 x CPU fan/water cooling pump header;
-4 x system fan headers;
-3 x addressable RGB Gen2 LED strip headers;
-1 x RGB LED strip header;
-4 x SATA 6Gb/s connectors;
-3 x M.2 Socket 3 connectors;
-1 x front panel header;
-1 x front panel audio header;
-1 x USB Type-C® header, with USB 3.2 Gen 2x2 support;
-1 x USB 3.2 Gen 1 header;
-4 x USB 2.0/1.1 headers;
-1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only);
-1 x reset jumper;
-1 x Clear CMOS jumper;

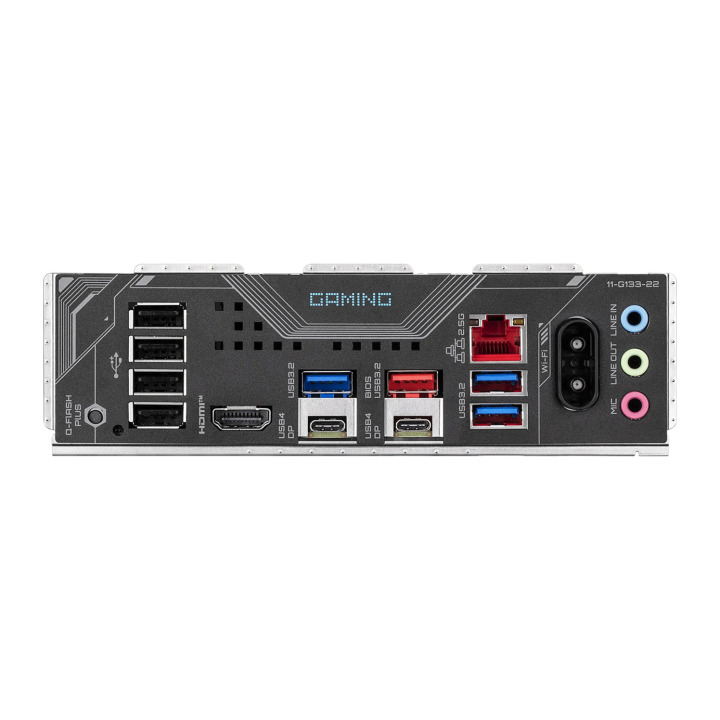

Back Panel Connectors;
-1 x Q-Flash Plus button;
-2 x SMA antenna connectors (2T2R);
-1 x HDMI port (Note);
-2 x USB4® USB Type-C® ports (DisplayPort (Note));
-1 x USB 3.2 Gen 2 Type-A port (red);
-3 x USB 3.2 Gen 1 ports;
-4 x USB 2.0/1.1 ports;
-1 x RJ-45 port;
-3 x audio jacks;
(Note) Actual support may vary by CPU.
ЗвукRealtek® Audio CODEC;
High Definition Audio;
2/4/5.1/7.1-channel;
* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
Мрежа (LAN)Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Безжична връзкаRealtek® Wi-Fi 6 RTL8851BE (PCB rev. 1.0);
- WIFI a, b, g, n, ac, ax, supporting 2.4/5 GHz carrier frequency bands;
- BLUETOOTH 5.3;
- Support for 11ax 80MHz wireless standard;
(Actual data rate may vary depending on environment and equipment.)
BIOS1 x 256 Mbit flash;
Use of licensed AMI UEFI BIOS;
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Форм-факторATX Form Factor;
30.5cm x 24.4cm
Операционна системаSupport for Windows 11 64-bit;
Support for Windows 10 64-bit
Гаранция3 години

  • Марка
  • Референция
    X870 GAMING WF6 1.0
  • EAN13
    4719331865399
  • MPN
    X870 GAMING WF6 1.0
Плащане с наложен платеж
Плащане при получаване
Еконт и Спиди
Доставка до адрес или офис
14 дни право на връщане
При покупка онлайн
