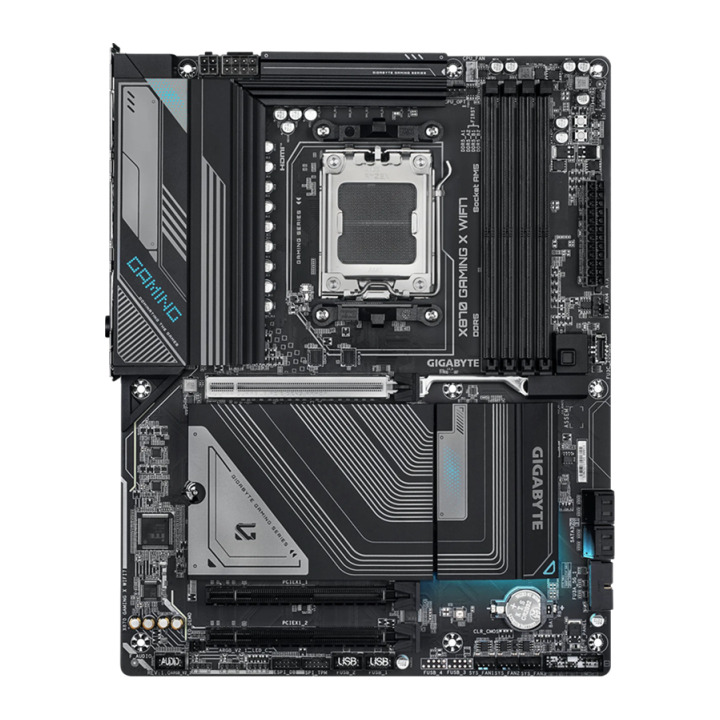

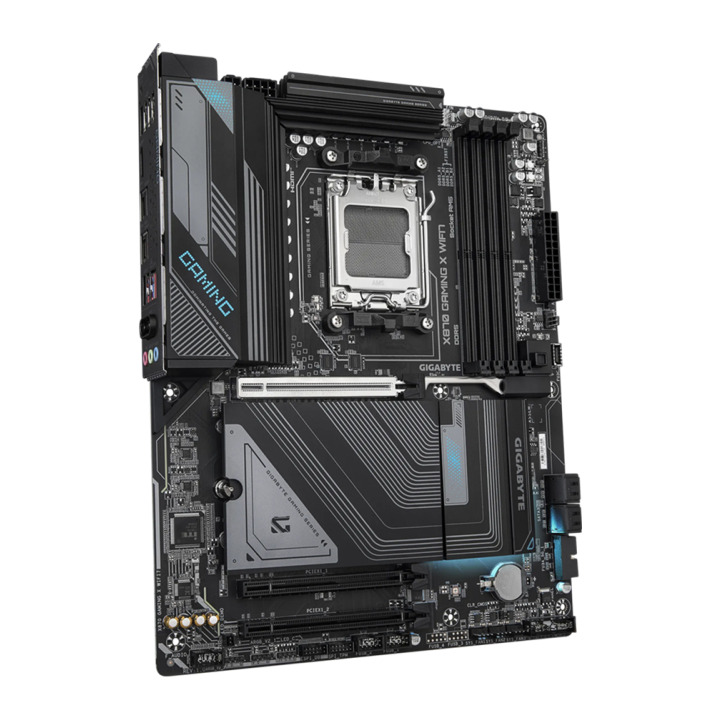

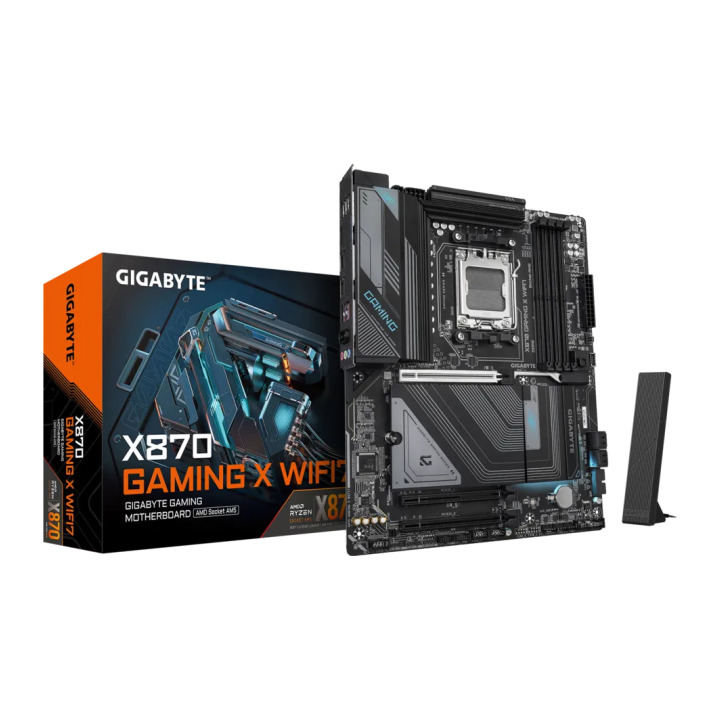

GIGABYTE GB X870 GAMING X WIFI7
GIGABYTE GB X870 GAMING X WIFI7
GIGABYTE GB X870 GAMING X WIFI7
GIGABYTE GB X870 GAMING X WIFI7

Дънна платка GIGABYTE GB X870 GAMING X WIFI7

GIGABYTE
277,75 €
с включено ДДС
В наличност
  • Сокет на процесора: AM5
  • Чипсет: AMD X870
  • Брой слотове за памет DDR5: 4
  • Брой SATA3 портове за диск: 4
  • Тип: Поддържа RAID
  • Тип: Наличие на HDMI изход
  • Тип: 3 броя M.2 слотове
  • Гаранция: 3 години
Споделяне

ГрафикаIntegrated Graphics Processor with AMD Radeon™ Graphics support+ASMedia USB4® Controller:;
- 2 x USB4® USB Type-C® ports, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160@240 Hz;
* Support for DisplayPort 1.4 version and HDR.;
Integrated Graphics Processor with AMD Radeon™ Graphics support:;
- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz;
* Support for HDMI 2.1 version, HDCP 2.3, and HDR.;
** Support native HDMI 2.1 TMDS compatible ports.
ЧипсетAMD X870
Слотове за разширение1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:;
AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x16 mode;
AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode;
AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode;
* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.;
Chipset:;
- 2 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1/2)
Съхранение на данниx M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs:;
AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs;
AMD Ryzen™ 8000 Series- Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs;
AMD Ryzen™ 8000 Series- Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs;
1 x M.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0 x2 SSDs;
1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0 x4/x2 SSDs;
4 x SATA 6Gb/s connectors;
RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices;
* RAID 5 is only available on AMD Ryzen™ 9000 Series Processors.;
RAID 0, RAID 1, and RAID 10 support for SATA storage devices
Тип паметSupport for DDR5 8200(OC) / 8000(OC) / 7800(OC) / 7600(OC) / 7200(OC) / 7000(OC) / 6800(OC) / 6666(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules;
4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory;
Dual channel memory architecture;
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules;
Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules
Портове на задния панелiTE® I/O Controller Chip
USBCPU+ASMedia USB4® controller:;
- 2 x USB4® USB Type-C® ports on the back panel;
CPU:;
- 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel;
- 1 x USB 3.2 Gen 1 port on the back panel;
CPU+USB 2.0 Hub:;
- 4 x USB 2.0/1.1 ports on the back panel;
Chipset:;
- 1 x USB Type-C® port with USB 3.2 Gen 2x2 support, available through the internal USB header;
- 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header);
- 4 x USB 2.0/1.1 ports available through the internal USB headers
Конектори1 x 24-pin ATX main power connector;
1 x 8-pin ATX 12V power connector;
1 x 4-pin ATX 12V power connector;
1 x CPU fan header;
1 x CPU fan/water cooling pump header;
4 x system fan headers;
3 x addressable RGB Gen2 LED strip headers;
1 x RGB LED strip header;
4 x SATA 6Gb/s connectors;
3 x M.2 Socket 3 connectors;
1 x front panel header;
1 x front panel audio header;
1 x USB Type-C® header, with USB 3.2 Gen 2x2 support;
1 x USB 3.2 Gen 1 header;
2 x USB 2.0/1.1 headers;
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only);
1 x power button;
1 x reset button;
1 x reset jumper;
1 x Clear CMOS jumper;

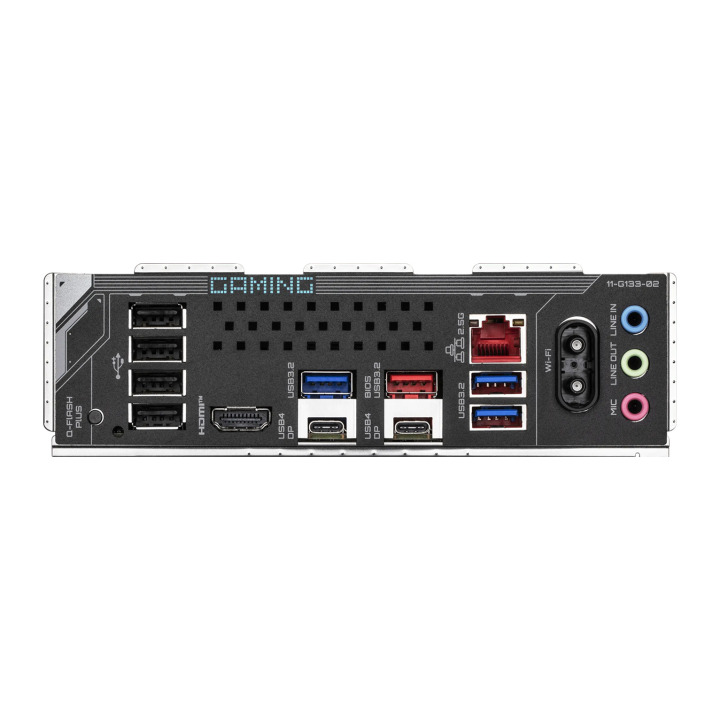

Back Panel Connectors;
1 x Q-Flash Plus button;
2 x antenna connectors (2T2R);
1 x HDMI port(Note);
2 x USB4® USB Type-C® ports (DisplayPort*);
1 x USB 3.2 Gen 2 Type-A port (red);
3 x USB 3.2 Gen 1 ports;
4 x USB 2.0/1.1 ports;
1 x RJ-45 port;
3 x audio jacks
ЗвукRealtek® Audio CODEC;
High Definition Audio;
2/4/5.1/7.1-channel
Мрежа (LAN)Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Безжична връзкаMediaTek Wi-Fi 7 MT7925 (PCB rev. 1.0);
- 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands;
- BLUETOOTH 5.4;
- Support for 11be 160MHz wireless standard;
Realtek® Wi-Fi 7 RTL8922AE (PCB rev. 1.1);
- 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands;
- BLUETOOTH 5.4;
- Support for 11be 160MHz wireless standard
Bluetooth5.4
BIOS1 x 256 Mbit flash;
Use of licensed AMI UEFI BIOS;
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Форм-факторATX Form Factor;
30.5cm x 24.4cm
Операционна системаSupport for Windows 11 64-bit;
Norton® Internet Security (OEM version);
LAN bandwidth management software
Гаранция3 години

  • Марка
  • Референция
    X870 GAMING X WIFI7 1.1
  • EAN13
    4719331865368
  • MPN
    X870 GAMING X WIFI7 1.1
