GIGABYTE GB Z890M GAMING X /LGA1851
GIGABYTE GB Z890M GAMING X /LGA1851
GIGABYTE GB Z890M GAMING X /LGA1851

Дънна платка GIGABYTE GB Z890M GAMING X /LGA1851

GIGABYTE
208,04 €
с включено ДДС
В наличност
  • Сокет на процесора: LGA1851
  • Чипсет: Intel Z890
  • Брой слотове за памет DDR5: 4
  • Брой SATA3 портове за диск: 4
  • Тип: Поддържа RAID
  • Тип: Наличие на HDMI изход
  • Тип: Наличие на 2 броя Display port изход
  • Гаранция: 3 години
Споделяне

ГрафикаIntegrated Graphics Processor-Intel® HD Graphics support;
- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz;
* Support for HDMI 2.1 version and HDCP 2.3.;
** Support for native HDMI 2.1 TMDS compatible ports.;
- 2 x DisplayPorts, supporting a maximum resolution of 4096x2304@60 Hz;
* Support for DisplayPort 2.1 version.;
(Graphics specifications may vary depending on CPU support.);
Support for up to triple-display at the same time
ЧипсетIntel® Z890 Express Chipset
Слотове за разширениеCPU;
- 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16);
* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.;
Chipset;
- 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)
Съхранение на данниCPU;
- 1 x M.2 connector (Socket 3, M key, type 2580/2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU);
Chipset;
- 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support)(M2Q_SB);
- 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0x4/x2 SSD support) (M2N_SB);
- 4 x SATA 6Gb/s connectors;
RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices;
RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
Тип паметSupport for DDR5 9200(O.C) / 9066(O.C) / 8933(O.C) / 8800(O.C) / 8600(O.C) / 8400(O.C) /8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400 / 6200 / 6000 / 5800 / 5600MT/s memory modules.;
4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity)of system memory;
Dual channel memory architecture;
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode);
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules;
Support for Extreme Memory Profile (XMP) memory modules;
Support CUDIMM memory module;
(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" for more information.)
Портове на задния панелChipset;
- 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header;
- 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header);
- 2 x USB 2.0/1.1 ports on the back panel;
Chipset+2 USB 2.0 Hubs;
- 4 x USB 2.0/1.1 ports available through the internal USB headers
КонекториiTE® I/O Controller Chip;
1 x 24-pin ATX main power connector;
1 x 8-pin ATX 12V power connector;
1 x CPU fan header;
1 x CPU fan/water cooling pump header;
1 x system fan header;
1 x system fan/water cooling pump header;
2 x addressable RGB Gen2 LED strip headers;
1 x RGB LED strip header;
3 x M.2 Socket 3 connectors;
4 x SATA 6Gb/s connectors;
1 x front panel header;
1 x front panel audio header;
1 x USB Type-C® header, with USB 3.2 Gen 1 support;
1 x USB 3.2 Gen 1 header;
2 x USB 2.0/1.1 headers;
2 x Thunderbolt™ add-in card connectors;
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only);
1 x serial port header;
1 x Clear CMOS jumper;

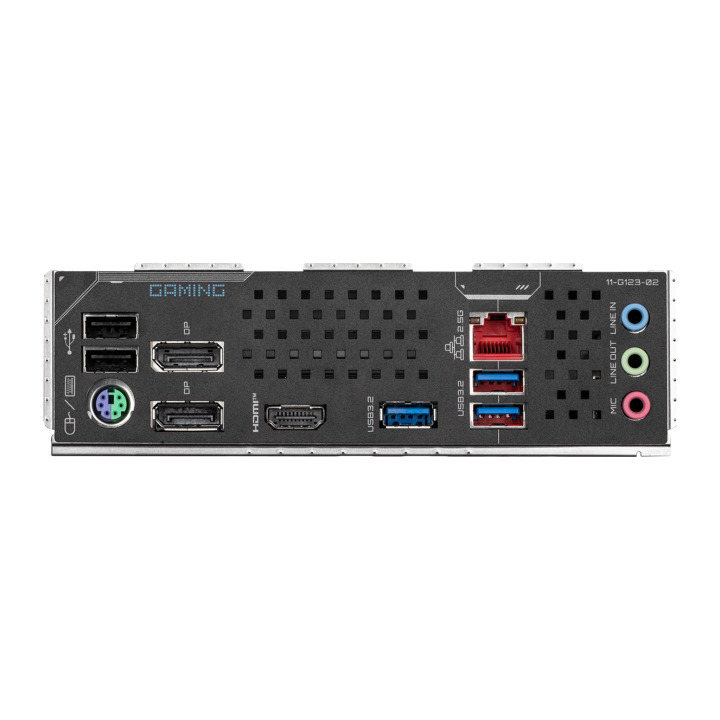

Back Panel Connectors: 1 x PS/2 keyboard/mouse port;
3 x USB 3.2 Gen 1 ports;
2 x USB 2.0/1.1 ports;
1 x HDMI port (Note);
2 x DisplayPorts (Note);
1 x RJ-45 port;
3 x audio jacks;
(Note) Actual support may vary by CPU.
ЗвукRealtek® Audio CODEC;
High Definition Audio;
2/4/5.1/7.1-channel;
* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings
Мрежа (LAN)Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
BIOS1 x 256 Mbit flash;
Use of licensed AMI UEFI BIOS;
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Форм-фактор\t Micro ATX Form Factor;
24.4cm x 24.4cm
Операционна системаSupport for Windows 11 64-bit;
Support for Windows 10 64-bit
Гаранция3 години

  • Марка
  • Референция
    Z890M GAMING X 1.0
  • MPN
    Z890M GAMING X 1.0
Плащане с наложен платеж
Плащане при получаване
Еконт и Спиди
Доставка до адрес или офис
14 дни право на връщане
При покупка онлайн

Коментари (0)

Все още няма отзиви от клиенти.
