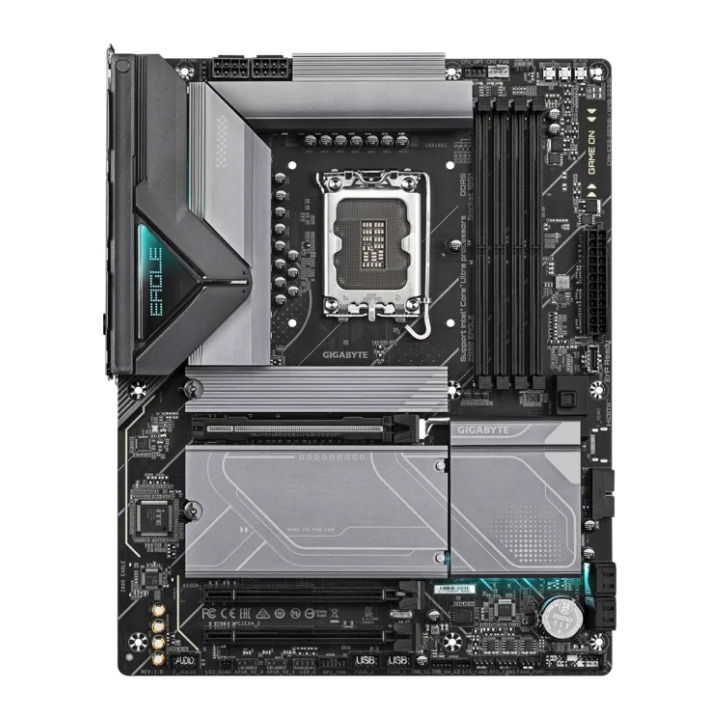

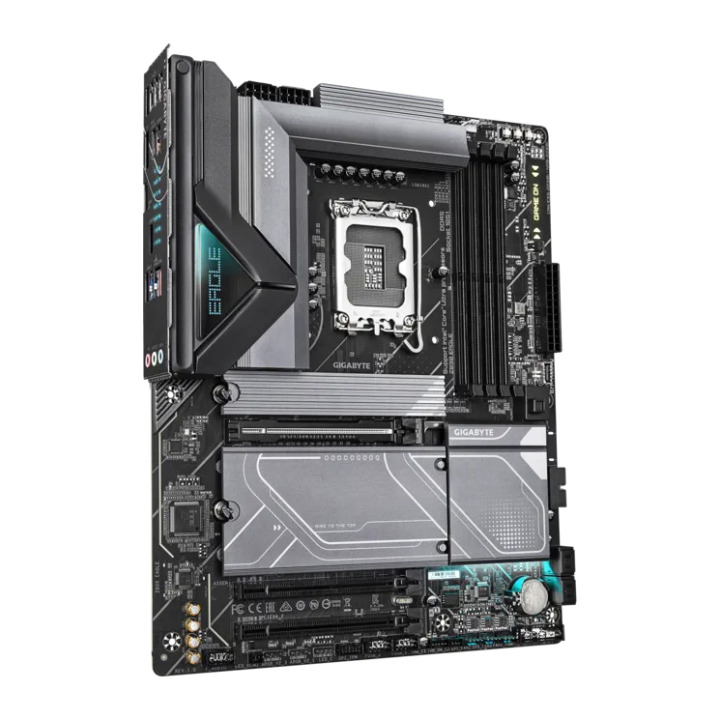

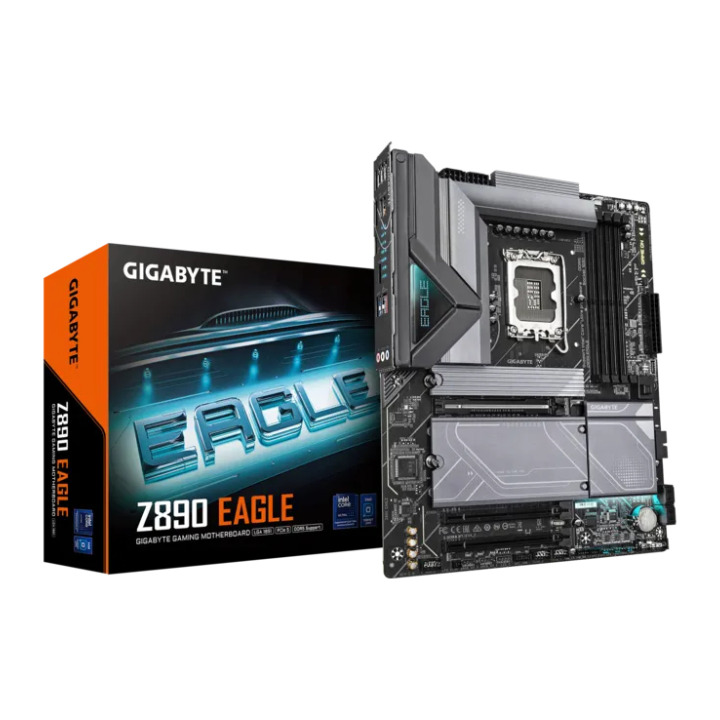

Дънна платка GIGABYTE GB Z890 EAGLE

GIGABYTE
240,74 €
с включено ДДС
В наличност
  • Сокет на процесора: LGA1851
  • Гаранция: 3 години
Споделяне

ПроизводителGigabyte
ГрафикаIntegrated Graphics Processor-Intel® HD Graphics support:;
- 1 x USB4® USB Type-C® port, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160@144 Hz;
* Support for DisplayPort 2.1 version;
- 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz;
* Support for DisplayPort 2.1 version;
(Graphics specifications may vary depending on CPU support.)
Поддържани процесориLGA1851 socket: Support for Intel® Core™ Ultra Processors;
(Go to GIGABYTE's website for the latest CPU support list.);
L3 cache varies with CPU
ЧипсетIntel® Z890 Express Chipset
Слотове за разширениеCPU:;
- 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16);
* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.;
Chipset:;
- 2 x PCI Express x16 slots, supporting PCIe 4.0 and running at x4 (PCIEX4_1/2)
Съхранение на данниCPU:;
- 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280;
PCIe 5.0 x4/x2 SSD support) (M2A_CPU);
- 1 x M.2 connector (Socket 3, M key, type 22110/2280;
PCIe 4.0 x4/x2 SSD support) (M2B_CPU);
Chipset:;
- 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB);
- 1 x M.2 connector (Socket 3, M key, type 22110/2280 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB);
- 4 x SATA 6Gb/s connectors
RAIDRAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices;
RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
Тип паметSupport for DDR5 8800(O.C) / 8600(O.C) / 8400(O.C) / 8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400 / 6200 / 6000 / 5800 / 5600MT/s memory modules.;
4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory;
Dual channel memory architecture;
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode);
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules;
Support for Extreme Memory Profile (XMP) memory modules;
(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)
Портове на задния панелiTE® I/O Controller Chip
USBCPU:;
- 1 x USB4® USB Type-C® port on the back panel;
Chipset:;
- 1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header;
- 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel;
- 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header);
Chipset+2 USB 2.0 Hubs:;
- 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
КонекториInternal I/O Connectors;
1 x 24-pin ATX main power connector;
2 x 8-pin ATX 12V power connectors;
1 x CPU fan header;
1 x CPU fan/water cooling pump header;
3 x system fan headers;
1 x system fan/water cooling pump header;
3 x addressable RGB Gen2 LED strip headers;
1 x RGB LED strip header;
4 x M.2 Socket 3 connectors;
4 x SATA 6Gb/s connectors;
1 x front panel header;
1 x front panel audio header;
1 x USB Type-C® header, with USB 3.2 Gen 2 support;
1 x USB 3.2 Gen 1 header;
2 x USB 2.0/1.1 headers;
2 x Thunderbolt™ add-in card connectors (For GIGABYTE Thunderbolt™ 5 add-in card only);
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only);
1 x power button;
1 x Q-Flash Plus button;
1 x reset button;
1 x reset jumper;
1 x Clear CMOS jumper;

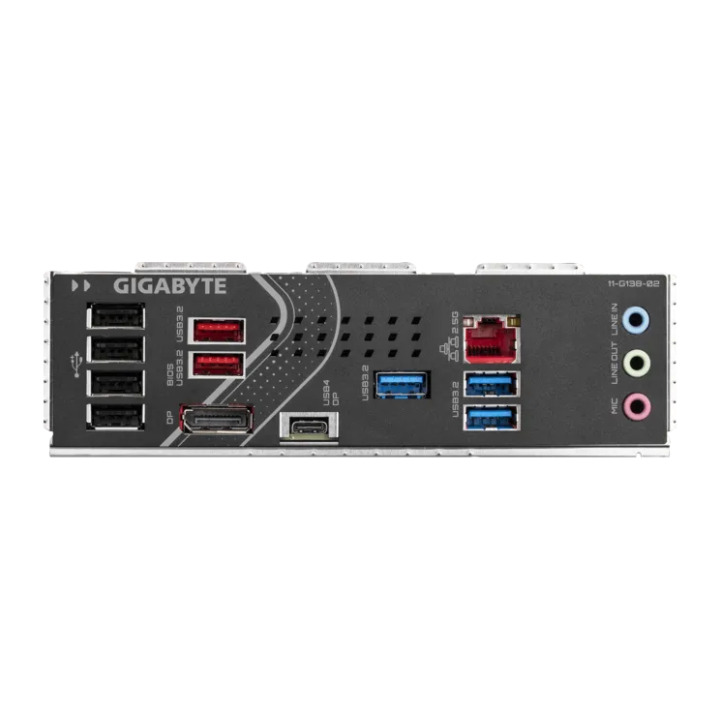

Back Panel Connectors;
1 x USB4® USB Type-C® port (DisplayPort (Note));
2 x USB 3.2 Gen 2 Type-A ports (red);
3 x USB 3.2 Gen 1 ports;
4 x USB 2.0/1.1 ports;
1 x DisplayPort (Note);
2 x antenna connectors (2T2R);
1 x RJ-45 port;
3 x audio jacks
ЗвукRealtek® Audio CODEC;
High Definition Audio;
2/4/5.1/7.1-channel;
* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
Мрежа (LAN)Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
BIOS1 x 256 Mbit flash;
Use of licensed AMI UEFI BIOS;
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Форм-факторATX Form Factor;
30.5cm x 24.4cm
Операционна системаSupport for Windows 11 64-bit
Гаранция3 години

  • Марка
  • Референция
    Z890 EAGLE
  • EAN13
    4719331865214
  • MPN
    Z890 EAGLE
