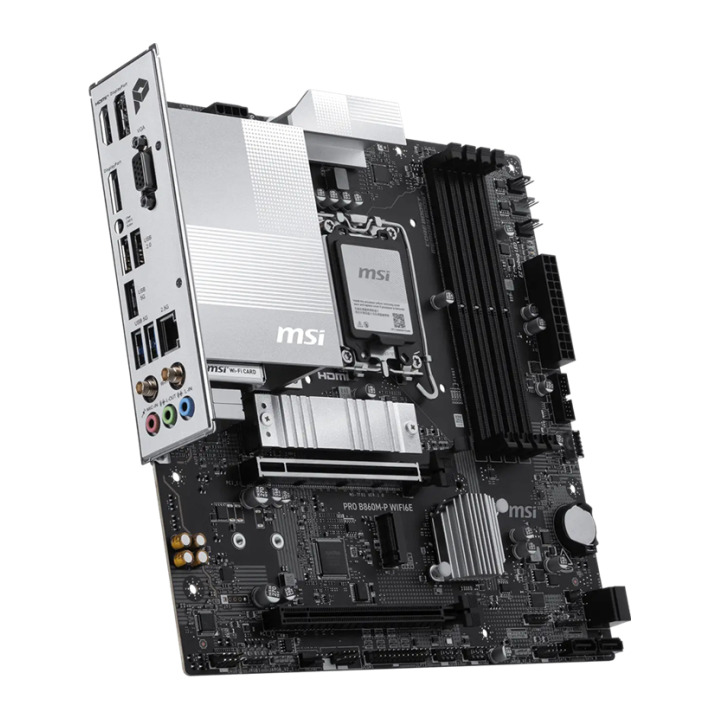

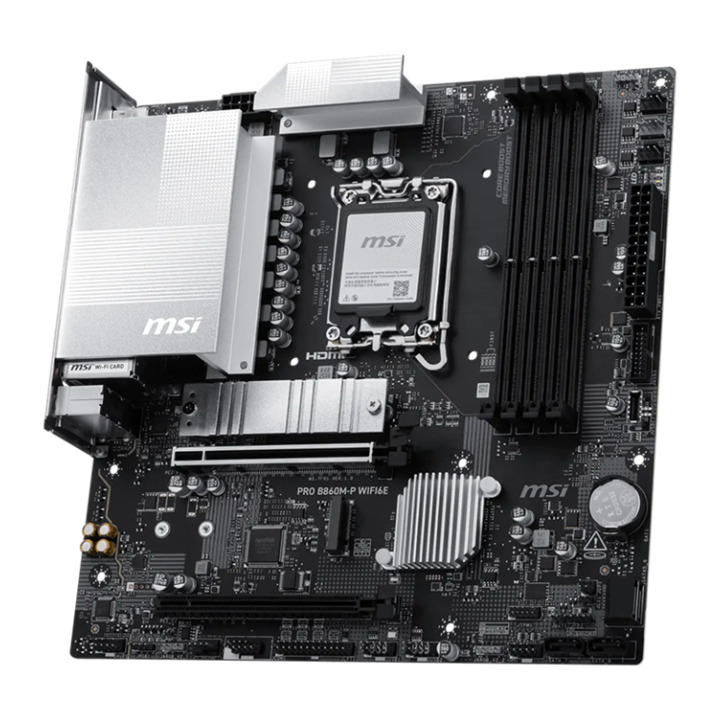

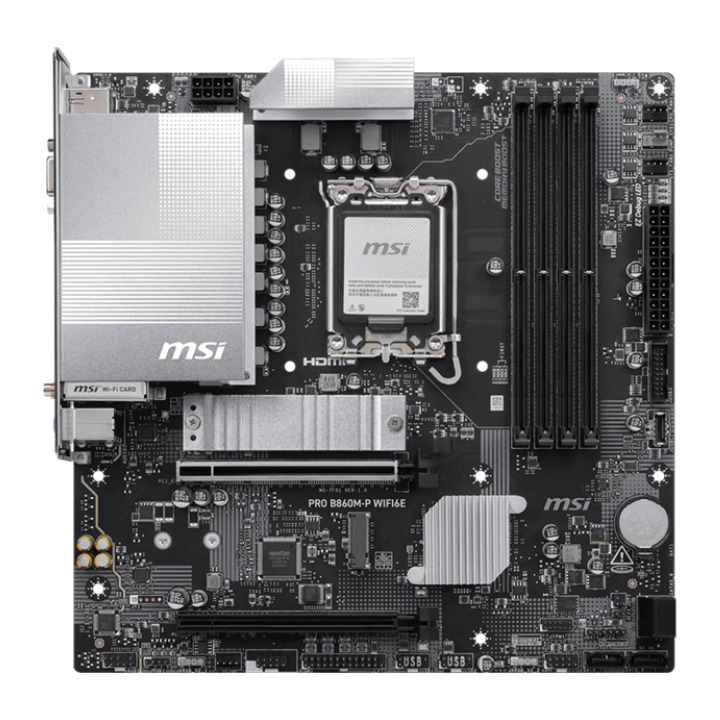

Дънна платка MSI PRO B860M-P WIFI6E

MSI

154,43 €

с включено ДДС

В наличност

Сокет на процесора: LGA1851
Гаранция: 3 години

Споделяне

Производител	MSI
Модел	PRO B860M-P WIFI6E
Сокет	LGA 1851
Графика	1x HDMI™; Support HDMI™ 2.1 port with TMDS, maximum resolution of 4K 60Hz; 2x DisplayPort; Support DisplayPort 1.4 port with HBR2, maximum resolution of 4K 60Hz; 1x VGA; Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz
Поддържани процесори	Supports Intel® Core™ Ultra Processors (Series 2)
Чипсет	INTEL B860
Слотове за разширение	2x PCI-E x16 slot; PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU); PCI_E2 Gen PCIe 4.0 supports up to x4 (From Chipset)
Съхранение на данни	2x M.2; M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices; M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices; 4x SATA 6G; *Please refer to the manual for M.2 SSD heatsink restrictions.
RAID	Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Тип памет	4x DDR5 UDIMM, Maximum Memory Capacity 256GB; Memory Support DDR5 8800 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s; Max. overclocking:; • 1DPC 1R Max speed up to 8800+ MT/s; • 1DPC 2R Max speed up to 7200+ MT/s; • 2DPC 1R Max speed up to 6400+ MT/s; • 2DPC 2R Max speed up to 5600+ MT/s; Supports Intel® POR Speed and JEDEC Speed; Supports Memory Overclocking and Intel® XMP 3.0; Supports Dual-Controller Dual-Channel mode; Supports Non-ECC, Un-buffered memory; Supports CUDIMM

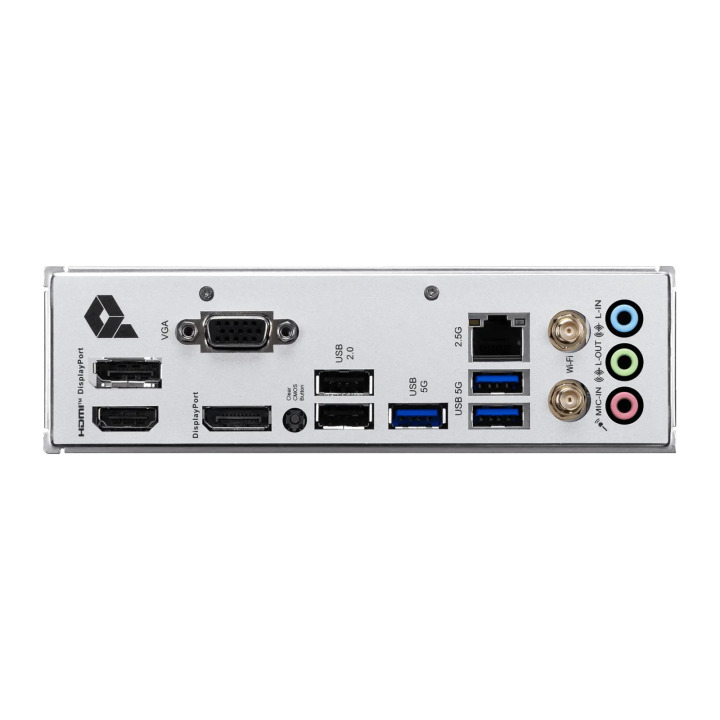

Портове на задния панел	DisplayPort; VGA; USB 2.0; USB 5Gbps Type-A; 2.5G LAN; Wi-Fi / Bluetooth; Audio Connectors; HDMI™; DisplayPort; Clear CMOS Button; USB 5Gbps Type-A
USB	2x USB 2.0 (Rear); 4x USB 2.0 (Front); 3x USB 5Gbps Type A (Rear); 2x USB 5Gbps Type A (Front); 1x USB 5Gbps Type C (Front)
Конектори	1x Power Connector(ATX_PWR); 1x Power Connector(CPU_PWR); 1x CPU Fan; 1x Combo Fan (Pump_Sys Fan); 2x System Fan; 2x Front Panel (JFP); 1x Chassis Intrusion (JCI); 1x Front Audio (JAUD); 1x Printer Port (JLPT); 1x Com Port (JCOM); 3x Addressable V2 RGB LED connector (JARGB_V2); 1x RGB LED connector(JRGB); 1x TPM pin header(Support TPM 2.0); 4x USB 2.0 ports; 2x USB 5Gbps Type A ports; 1x USB 5Gbps Type C ports
Звук	Realtek® ALC897 Codec; 7.1-Channel High Definition Audio
Мрежа (LAN)	Realtek® 8125 2.5Gbps LAN
Безжична връзка	Wi-Fi 6E; The Wireless module is pre-installed in the M.2 (Key-E) slot; Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps; Supports 802.11 a/ b/ g/ n/ ac/ ax
Bluetooth	Supports Bluetooth® 5.3**, FIPS, FISMA
Форм-фактор	mATX, 243.84mmx243.84mm
Операционна система	Support for Windows® 11 64-bit
Други	4x EZ Debug LED; 1x EZ Memory Detection LED
Гаранция	3 години
