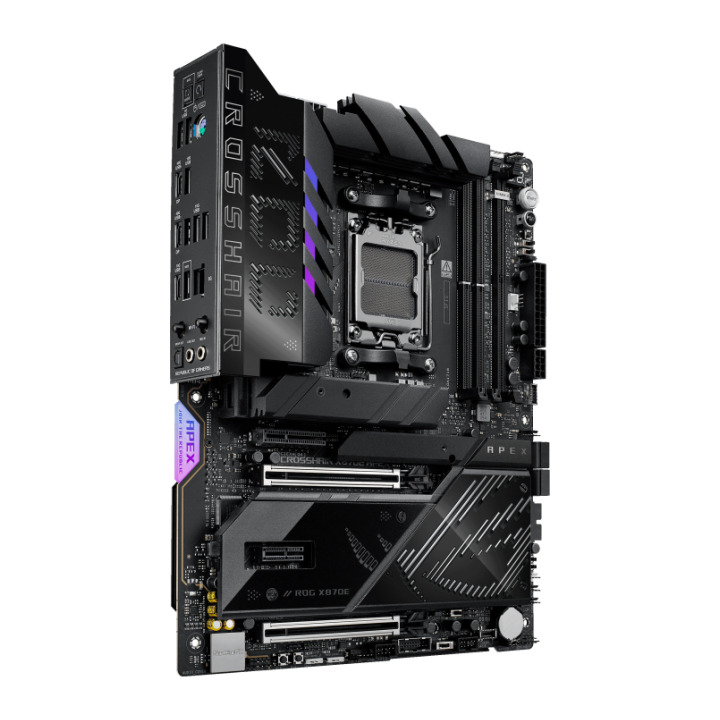

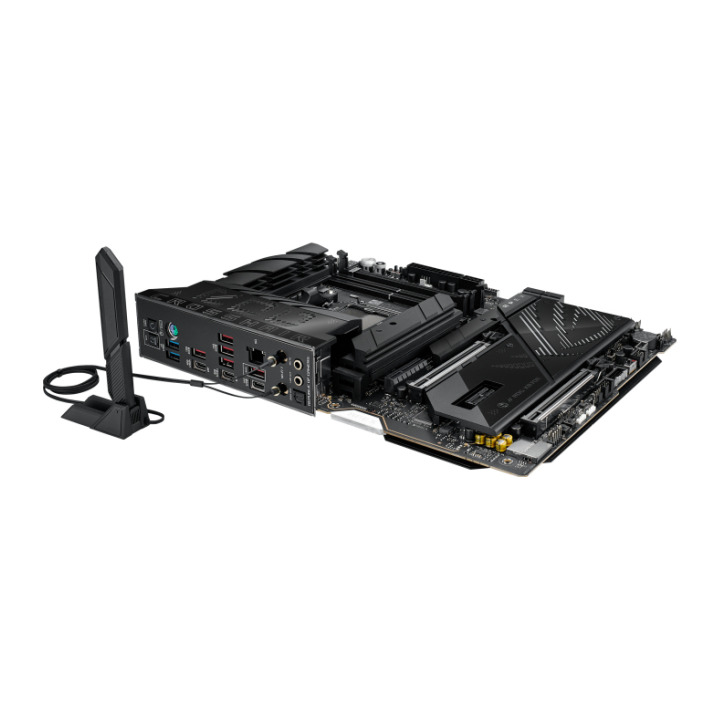

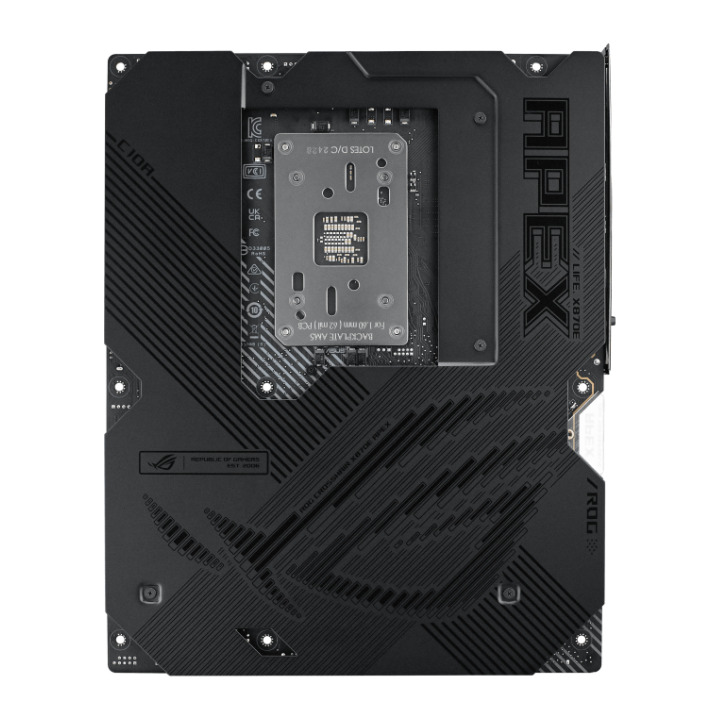

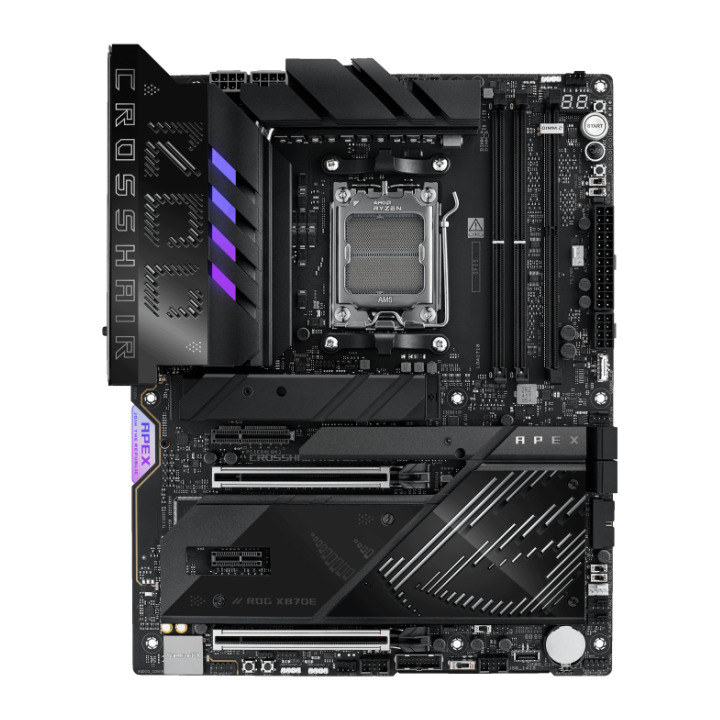

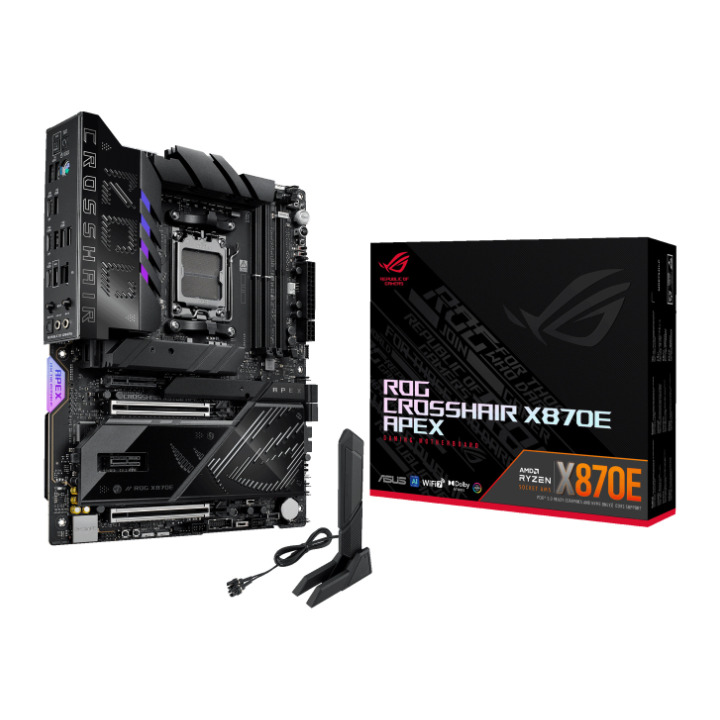

ASUS ROG CROSSHAIR X870E APEX
ASUS ROG CROSSHAIR X870E APEX
ASUS ROG CROSSHAIR X870E APEX
ASUS ROG CROSSHAIR X870E APEX
ASUS ROG CROSSHAIR X870E APEX

Дънна платка ASUS ROG CROSSHAIR X870E APEX

ASUS
833,24 €
с включено ДДС
В наличност
  • Сокет на процесора: AM5
  • Чипсет: AMD X870
  • Брой слотове за памет DDR5: 2
  • Брой SATA3 портове за диск: 4
  • Тип: Поддържа RAID
  • Тип: Наличие на HDMI изход
  • Тип: 2 броя PCI Express x16 слот
  • Гаранция: 3 години
Споделяне

ПроизводителASUS
Графика2 x USB4® (40Gbps) ports support USB Type-C® display outputs*;
Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications.;
VGA resolution support depends on processors' or graphic cards' resolution.;
*Supports max. 4K@60Hz as specified in DisplayPort 1.4a
Поддържани процесориAMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors
ЧипсетAMD X870E
Слотове за разширениеAMD Ryzen™ 9000 & 7000 Series Desktop Processors*;
2 x PCIe 5.0 x16 slots with Q-Release Slim (supports x16 or x8/x8** or x8/x4/x4 modes***);
** When you use both PCIEX16_1 and PCIEX16_2, PCIEX16_1 and PCIEX16_2 will run x8. ;
***When M.2_3 are enabled, PCIEX16_1 will run x8, and PCIEX16_2 will run x4.;
**** When M.2_2 and M.2_3 are enabled simultaneously, PCIEX16_2 will be disabled.;
AMD Ryzen™ 8700 & 8600 & 8400 Series Desktop Processors*;
2 x PCIe 4.0 x16 slots with Q-Release Slim (only supports PCIEx16_1 & total bandwidth for x8, PCIEx16_2 will be disabled);
AMD Ryzen™ 8500 & 8300 Series Desktop Processors*;
2 x PCIe 4.0 x16 slots with Q-Release Slim (only supports PCIEx16_1 & total bandwidth for x4, PCIEx16_2 will be disabled);
AMD X870E Chipset1 x PCIe 4.0 x4 slot;
1 x PCIe 3.0 x1 slot
Съхранение на данниSupports 5 x M.2 slots and 4 x SATA 6Gb/s ports*;
AMD Ryzen™ 9000 & 7000 Series Desktop Processors***;
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode);
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode);
M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode);
AMD Ryzen™ 8000 Series Desktop Processors;
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode);
M.2_2 slot (Key M), type 2242/2260/2280 (Not supports);
M.2_3 slot (Key M), type 2242/2260/2280 (Not supports);
AMD X870E Chipset;
DIMM.2_1 slot (Key M), type 2230/2242/2260/2280/22110 (supports PCIe 4.0 x4 mode);
DIMM.2_2 slot (Key M), type 2230/2242/2260/2280/22110 (supports PCIe 4.0 x4 mode);
4 x SATA 6Gb/s ports;
** When M.2_2 and M.2_3 are enabled simultaneously, PCIEX16_2 will be disabled. ;
***When M.2_3 are enabled, PCIEX16_1 will run x8, and PCIEX16_2 will run x4, M.2_2 will be disabled.;
AMD RAIDXpert2 Technology;
Ryzen™ 9000 Series Processors: RAID 0/1/5/10;
Ryzen™ 8000 Series Processors: RAID 0/1;
R
Тип памет2 x DIMM slots, max. 128GB, DDR5 ;
Supports up to;
8200+MT/s(OC) with Ryzen™ 9000 Series Processors,;
9600+MT/s(OC) with Ryzen™ 8000 Series Processors;
8000+MT/s(OC) with Ryzen™ 7000 Series Processors,;
ECC and Non-ECC, Un-buffered Memory*;
Dual channel memory architecture ;
Supports AMD Extended Profiles for Overclocking (EXPO™);
ASUS Enhanced Memory Profile (AEMP)
Портове на задния панел2 x USB4® (40Gbps) ports (2 x USB Type-C®);
6 x USB 10Gbps ports (5 x Type-A + 1 x USB Type-C®) ;
2 x USB 5Gbps ports (2 x Type-A)1 x Wi-Fi module;
1 x Realtek 5Gb Ethernet port;
1 x PS/2 keyboard/mouse combo port ;
2 x Gold-plated audio jacks1 x Optical S/PDIF out port;
1 x BIOS FlashBack™ button ;
1 x Clear CMOS button
USBRear USB (Total 10 ports);
2 x USB4® (40Gbps) ports (2 x USB Type-C®);
6 x USB 10Gbps ports (5 x Type-A + 1 x USB Type-C®) 2 x USB 5Gbps ports (2 x Type-A);
Front USB (Total 10 ports);
1 x USB 20Gbps (supports USB Type-C® with up to 60W PD/QC4+)*;
1 x USB 20Gbps connector (supports USB Type-C®);
2 x USB 5Gbps headers support 4 additional USB 5Gbps ports;
2 x USB 2.0 headers support 4 additional USB 2.0 ports;
USB Type-C® power delivery output: max. 5V/3A;
*USB Type-C® power delivery output: 5/9/15/20V max. 3A, PPS:3.3–21V max. 3A
КонекториFan and Cooling Related ;
1 x 4-pin CPU Fan header;
1 x 4-pin CPU OPT Fan header1 x 4-pin AIO Pump header;
2 x 4-pin Chassis Fan headers;
2 x 4-pin Full Speed Fan headers;
1 x W_PUMP+ header;
1 x Extra Flow Fan header;
Power Related;
1 x 24-pin Main Power connector;
2 x 8-pin +12V CPU Power connector;
1 x 8-pin PCIe Power connectorStorage Related;
3 x M.2 slots (Key M);
4 x SATA 6Gb/s ports;
USB ;
2 x USB 20Gbps connectors (support USB Type-C® ) ;
2 x USB 5Gbps headers support 4 additional USB 5Gbps ports;
2 x USB 2.0 headers support 4 additional USB 2.0 ports;
Miscellaneous;
1 x 80 Light Bar jumper;
3 x Addressable Gen2 headers;
1 x Alteration PCIe mode switch;
2 x BCLK button;
1 x BIOS Switch button ;
1 x FlexKey button ;
1 x Front Panel Audio header (F_AUDIO);
1 x LN2 Mode jumper ;
1 x Pause switch;
12 x ProbeIt Measurement Points;
1 x ReTry button;
2 x RSVD switches;
1 x RSVD_4 header;
1 x Safe Boot button;
1 x Slow Mode switch ;
1 x Start button;
1 x 10-1 pin System Panel header;
1 x Thermal Sensor header
ЗвукROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080*;
- Impedance sense for front and rear headphone outputs;
- Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking;
- High quality 120 dB SNR stereo playback output and 110 dB SNR recording input;
- Supports up to 32-Bit/384 kHz playback on front panel";
Audio Features ;
- SupremeFX Shielding Technology;
- Savitech SV3H712 AMP;
- Gold-plated audio jacks;
- Rear optical S/PDIF out port;
- Premium audio capacitors;
- Audio cover;
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
Мрежа (LAN)1 x Realtek 5Gb Ethernet;
ASUS LANGuard
Безжична връзкаWi-Fi 7 (Qualcomm QCNCM865 or MediaTek MT7927);
2x2 Wi-Fi 7 (802.11be) ;
Supports 2.4/5/6GHz frequency band;
Supports Wi-Fi 7 320MHz bandwidth;
Bluetooth® v5.4
Bluetooth5.4
BIOS2 x 256 Mb Flash ROM, UEFI AMI BIOS
Форм-факторATX Form Factor;
30.5 cm x 24.4 cm
Операционна системаWindows 11 (22H2 & later)
Гаранция3 години

  • Марка
  • Референция
    90MB1KR0-M0EAY0
  • EAN13
    4711387890240
  • MPN
    90MB1KR0-M0EAY0
Плащане с наложен платеж
Плащане при получаване
Еконт и Спиди
Доставка до адрес или офис
14 дни право на връщане
При покупка онлайн
