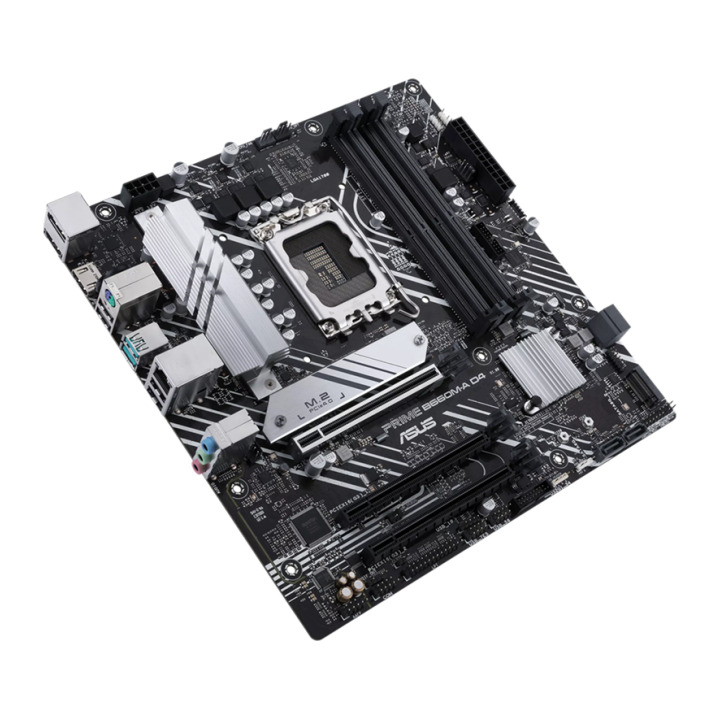

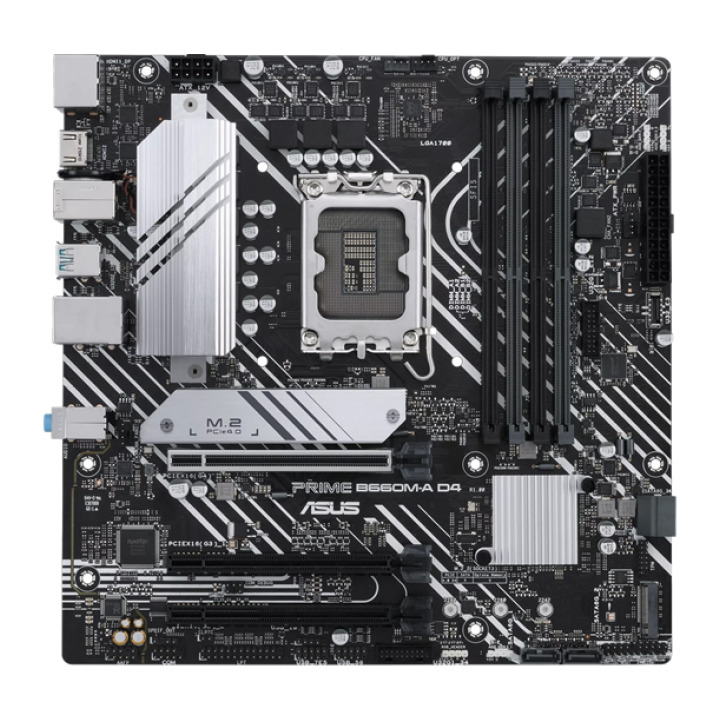

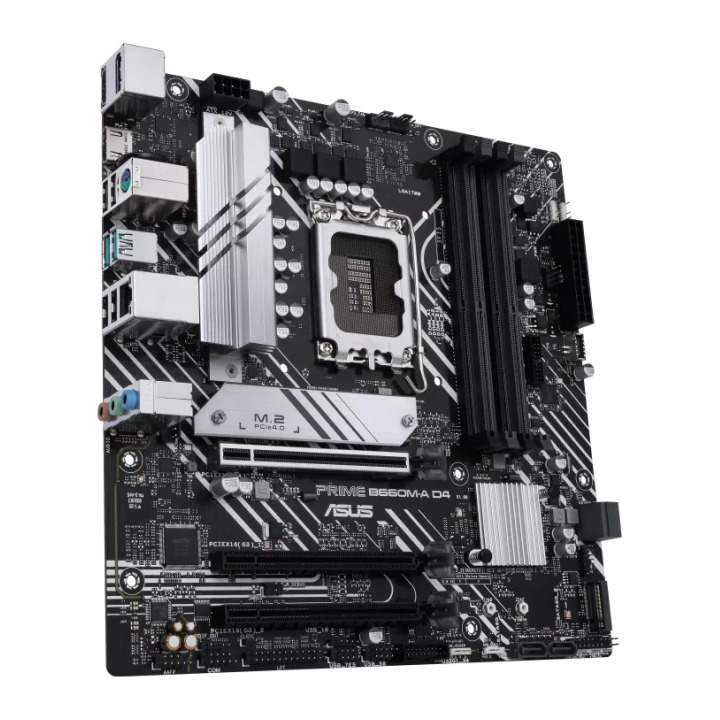

Дънна платка ASUS PRIME B660M-A D4-CSM

ASUS
178,55 €
с включено ДДС
В наличност
  • Сокет на процесора: LGA1700
  • Гаранция: 3 години
Споделяне

ПроизводителAsus
МоделPRIME B660M-A D4-CSM
Графика1 x DisplayPort **;
2 x HDMITM ports***;
* Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.;
** Supports max. 4K@60Hz as specified in DisplayPort 1.4.;
***Supports 4K@60Hz as specified in HDMI 2.1.;
1 x DisplayPort**;
2 x HDMI® ports***;
* Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.;
** Supports max. 4K@60Hz as specified in DisplayPort 1.4.;
***Supports 4K@60Hz as specified in HDMI 2.1.
Поддържани процесориIntel® Socket LGA1700 for Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® Processors;
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**;
* Refer to www.asus.com for CPU support list.;
** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.;
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**;
* Refer to www.asus.com for CPU support list.;
** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
ЧипсетIntel® B660 Chipset;
Intel® B660 Chipset
Слотове за разширениеIntel® 12th Gen Processors;
1 x PCIe 4.0/3.0 x16 slot;
Intel® B660 Chipset;
1 x PCIe 3.0 x16 slot (supports x4 mode);
1 x PCIe 3.0 x16 slot (supports x1 mode);
*Supports Intel® Optane Memory H Series on PCH-attached PCIe slot;
1 x PCle 4.0 x16+1 x PCle 3.0 x16 (max. x4)+2 x PCle 3.0 x16 (max. x1);
Intel® Core™ Processors (14th & 13th & 12th Gen)*;
1 x PCIe 4.0/3.0 x16 slot;
Intel® B660 Chipset *;
1 x PCIe 3.0 x16 slot (supports x4 mode);
1 x PCIe 3.0 x16 slot (supports x1 mode)
Съхранение на данниTotal supports 2 x M.2 slots and 4x SATA 6Gb/s ports*;
Intel® 12th Gen Processors;
M.2_1 slot (Key M), type 2242/2260/2280;
- Intel® 12th Gen processors support PCIe 4.0 x4 mode.;
Intel® B660 Chipset**;
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode);
4 x SATA 6Gb/s ports;
* Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10.;
** Intel® Rapid Storage Technology supports Intel® Optane Memory H Series on PCH attached M.2 slots;
Intel® Core™ Processors (14th & 13th & 12th Gen)*;
M.2_1 slot (Key M), type 2242/2260/2280;
Intel® B660 Chipset**;
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)*;
4 x SATA 6Gb/s ports;
* Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10.;
** Intel® Rapid Storage Technology supports Intel® Optane Memory H Series on PCH attached M.2 slots.
Тип памет4 x DIMM, Max. 128GB, DDR4
5333(OC)/ 5000(OC)/ 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4000(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200/ 3000/ 2933/ 2800/ 2666/ 2400/ 2133 Non-ECC, Un-buffered Memory* ;
Dual Channel Memory Architecture;
Supports Intel® Extreme Memory Profile (XMP);
OptiMem II;
*Actual memory data rate depends on the CPU types and DRAM modules, for more information refer to www.asus.com for memory support list.;
4 x DIMM, Max. 128GB, DDR4;
5333(OC)/ 5000(OC)/ 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4000(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200/ 3000/ 2933/ 2800/ 2666/ 2400/ 2133 Non-ECC, Un-buffered Memory*;
Dual Channel Memory Architecture;
Supports Intel® Extreme Memory Profile (XMP);
OptiMem II;
*Actual memory data rate depends on the CPU types and DRAM modules, for more information refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).

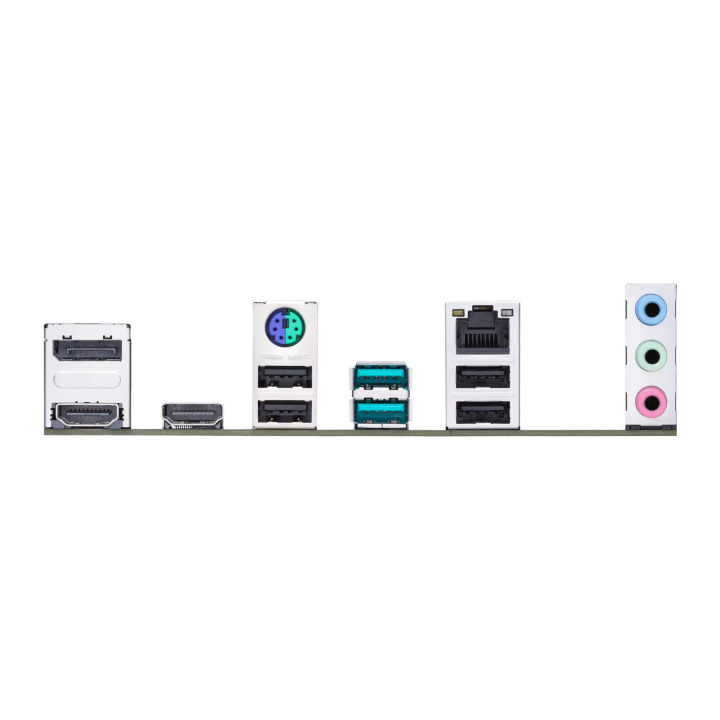

Портове на задния панел2 x USB 3.2 Gen 2 ports (2 x Type-A );
4 x USB 2.0 ports (4 x Type-A);
1 x DisplayPort;
2 x HDMITM ports;
1 x Intel® 1Gb Ethernet port;
3 x Audio jacks;
1 x PS/2 Keyboard/Mouse combo port;
2 x USB 3.2 Gen 2 ports (2 x Type-A );
4 x USB 2.0 ports (4 x Type-A);
1 x DisplayPort;
2 x HDMI® ports;
1 x Intel® 1Gb Ethernet port;
3 x Audio jacks;
1 x PS/2 Keyboard/Mouse combo port
USBRear USB (Total 6 ports);
2 x USB 3.2 Gen 2 ports (2 x Type-A );
4 x USB 2.0 ports (4 x Type-A) ;
Front USB (Total 10 ports);
2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports;
1 x USB 3.2 Gen 1 connector (supports USB Type-C®);
2 x USB 2.0 headers support additional 4 USB 2.0 ports;
1 x USB 2.0 header support 1 USB 2.0 port;
2 x USB 3.2 Gen 2 ports (2 x Type-A );
4 x USB 2.0 ports (4 x Type-A);
Front USB:Total 10 ports;
2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports;
1 x USB 3.2 Gen 1 connector (supports USB Type-C®);
2 x USB 2.0 headers support additional 4 USB 2.0 ports;
1 x USB 2.0 header supports 1 USB 2.0 port
КонекториFan and Cooling related;
1 x 4-pin CPU Fan header;
1 x 4-pin CPU OPT Fan header;
2 x 4-pin Chassis Fan headers;
Power related;
1 x 24-pin Main Power connector;
1 x 8-pin +12V Power connector;
Storage related;
2 x M.2 slots (Key M);
4 x SATA 6Gb/s ports;
USB;
2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports;
1 x USB 3.2 Gen 1 connector (supports USB Type-C®);
2 x USB 2.0 headers support additional 4 USB 2.0 ports;
1 x USB 2.0 header supports 1 USB 2.0 port;
Miscellaneous;
3 x AURA Addressable Gen 2 headers;
1 x AURA RGB header;
1 x Clear CMOS header;
1 x COM Port header;
1 x Front Panel Audio header (AAFP);
1 x LPT header;
1 x S/PDIF Out header;
1 x SPI TPM header (14-1pin);
1 x 20-3 pin System Panel header with Chassis intrude function;
Fan and Cooling related;
1 x 4-pin CPU Fan header;
1 x 4-pin CPU OPT Fan header;
2 x 4-pin Chassis Fan headers;
Power related;
1 x 24-pin Main Power connector;
1 x 8-pin +12V Power connector;
Storage related;
2 x M.2 slots (Key M);
4 x SATA 6Gb/s ports;
USB;
2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports;
1 x USB 3.2 Gen 1 connector (supports USB Type-C®);
2 x USB 2.0 headers support additional 4 USB 2.0 ports;
1 x USB 2.0 header supports 1 USB 2.0 port;
Miscellaneous;
3 x AURA Addressable Gen 2 headers;
1 x AURA RGB header;
1 x Clear CMOS header;
1 x COM Port header;
1 x Front Panel Audio header (AAFP);
1 x LPT header;
1 x S/PDIF Out header;
1 x SPI TPM header (14-1pin);
1 x 20-3 pin System Panel header with Chassis intrude function
ЗвукRealtek 7.1 Surround Sound High Definition Audio CODEC;
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking;
- Supports up to 24-Bit/192 kHz playback;
Audio Features;
- Audio Shielding;
- Premium audio capacitors;
- Dedicated audio PCB layers;
** A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.;
Realtek 7.1 Surround Sound High Definition Audio CODEC;
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking;
- Supports up to 24-Bit/192 kHz playback;
Audio Features;
- Audio Shielding;
- Premium audio capacitors;
- Dedicated audio PCB layers
Мрежа (LAN)1 x Intel® 1Gb Ethernet
BIOS128 Mb Flash ROM, UEFI AMI BIOS
Форм-факторmATX Form Factor
Операционна системаWindows® 11 64-bit, Windows® 10 64-bit
Размери24.4 cm x 24.4 cm
Гаранция3 години

  • Марка
  • Референция
    90MB19K0-M1EAYC
  • EAN13
    4711081508045
  • MPN
    90MB19K0-M1EAYC
Плащане с наложен платеж
Плащане при получаване
Еконт и Спиди
Доставка до адрес или офис
14 дни право на връщане
При покупка онлайн
